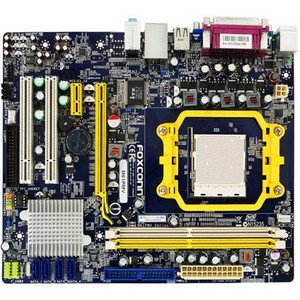

Main Features

Chipset Manufacturer: nVIDIA Chipset Model: GeForce 6100 Total Processor Support: 1 Processor Technology: HyperTransport Technology Processor Socket: Socket AM2+ Processor Support: Phenom, Athlon 64 X2, Athlon 64, Sempron HyperTransport: 1000MHz, 800MHz 64-bit Processing: Yes Number of Memory Slots: 2 Maximum Memory: 4GB Memory Standard: DDR2-1066/PC2-8500, DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 Memory Technology: DDR2 SDRAM IDE Controller: Yes IDE Standard: Ultra ATA/133 (ATA-7) Floppy Controller: Yes SATA Controller: Yes SATA Standard: Serial ATA/300 RAID Controller: Yes RAID Levels: 0, 1, 5, 0+1, JBOD Sound Controller Manufacturer: VIA Sound Controller Model: 1708B Audio Channels: 5.1 Fast Ethernet: Yes Expansion Slots: 2 x PCI, 1 x PCI Express x1, 1 x PCI Express x16 Back Panel Interfaces: 1 x Mini-phone Microphone, 1 x Mini-phone Audio Line In, 1 x Mini-phone Audio Line Out, 4 x Type A USB 2.0 USB, 1 x RJ-45 Network, 1 x DB-25 IEEE 1284 Parallel, 1 x mini-DIN Keyboard, 1 x mini-DIN Mouse, 1 x HD-15 VGA, 1 x DB-9 RS-232 Serial Front Panel Interfaces: 1 x HDD LED, 1 x Power LED, 1 x Reset Switch, 1 x On/Off Switch, 1 x Audio Header, 1 x IrDA, 2 x USB Header, 1 x CD-in/Aux-in Connector, 1 x S/PDIF Out, 1 x Chassis Intrusion Switch Number of IDE Interfaces: 1 Number of SATA Interfaces: 2 Form Factor: Micro ATX Dimensions: 9.6" Width x 8" Depth Additional Information: <p> DDR2 1066MHz is only supported by some AM2+ CPUs </p> <p><b>BIOS Features:</b> 8Mb flash EEPROM w/ LAN boot PnP ACPI WfM DMI 2.0 </p> <p><b>Support CD:</b> Drivers Adobe Reader Direct X9.0 Norton Internet security Super Utilities </p> Green Compliance: Yes Green Compliance Certificate/Authority: WEEE Standard Warranty: 3 Year Limited

Marketing Information

With advanced overclocking capability and a range of connectivity features for today multi-media computing requirements, M61PMV Desktop Board enables you to unleash more power from your computer.
