DESCRIPTION:

 FOR A MORE INFORMATION-http://www.ifm.com/ifmru/web/dsfs!AC2035.html

Model	AC2035
Manufacturer	ifm efector
Technical Specifications	Electrical design: 4 inputs / 4 outputs; bidirectional Output: transistor PNP Operating voltage [V]: 26.5...31.6 DC Total current consumption from AS-i [mA]: < 260 Inputs Input circuit: PNP Sensor supply: AS-i Voltage range [V]: 20...30 DC Max. current load for all inputs total [mA]: 200 Short-circuit protection: yes Switching level High signal 1 [V]: > 10 Input current High/Low [mA] > 5 / < 1 Outputs Electrically separated: yes Short-circuit protection: yes Integrated watchdog: yes Max. current load per output [mA]: 2000 **) External power supply: to PELV Voltage range [V]: 24 DC Max. current load per module [mA]: 4000 Operating temperature [?C]: -25...85 Protection: IP 67 AS-i profile: S-7.F.F I/O configuration [Hex]: 7 ID code [Hex]: F.F AS-i certificate: in preparation EMC: EN 50295 Housing material: PBT (Pocan); stainless steel (303S22) Function display: Power LED: green Function LED: yellow Connection: contact pins on FC-E or SC lower module Data bits: Data bit: bidirectional D0: I-1 / O-1 D1: I-2 / O-2 D2: I-3 / O-3 D3: I-4 / O-4 Parameter bits: Parameter bit: Function P0: watchdog activated*/deactivated for all outputs P1: not used P2: not used P3: not used Remarks: *) default **) DC12 / DC13 Inputs and outputs must be electrically isolated."
Applications	Active module upper part AS-universal module

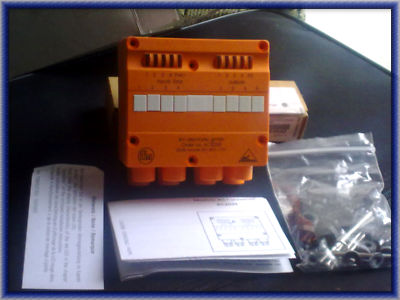

CONDITION: NEW unused,undamaged  in original packaging .

( include documents).

Weight [kg]0.312
