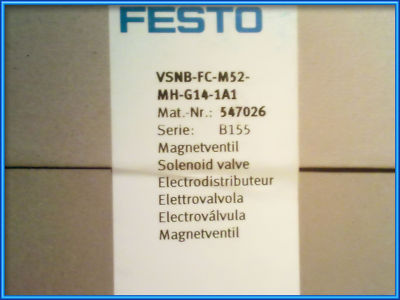

!FESTO VSNB-FC-M52-MH-G14-1A1 !
#547026
- with Namur port - Solenoid valve Normventile Namur
DESCRIPTION:
 |
 |
| Feature |
values |
| Valve function |
5/2 and 3/2 monostable |
| Type of actuation |
electrical |
| Width |
44.5 mm |
| Standard nominal flow rate |
950 l/min |
| Working pressure |
2.5 - 8 bar |
| Design structure |
Piston slide |
| Type of reset |
mechanical spring |
| Protection class |
IP65 |
| Nominal size |
8 mm |
| Exhaust-air function |
throttleable |
| Sealing principle |
soft |
| Assembly position |
Any |
| Conforms to standard |
VDI/VDE 3845 (NAMUR) |
| Manual override |
detenting
Pushing |
| Type of piloting |
Piloted |
| Flow direction |
non reversible |
| Freedom from overlap |
Yes |
| Pilot pressure |
2.5 - 8 bar |
| Switching time off |
100 ms |
| Switching time on |
30 ms |
| Duty cycle |
100% |
| Characteristic coil data |
24V DC: 2,1W |
| Permissible voltage fluctuation |
-15 % / +10 % |
| Operating medium |
filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated |
| Corrosion resistance classification CRC |
2 |
| Medium temperature |
-10 - 60 °C |
| Pilot medium |
Filtered compressed air |
| Ambient temperature |
-10 - 60 °C |
| Product weight |
510 g |
| Electrical connection |
Per DIN EN 175301-803
Design A |
| Mounting type |
On subbase |
| Scavenging orifice connection |
M5 |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
Subbase |
| Pneumatic connection, port 3 |
G1/4 |
| Pneumatic connection, port 4 |
Subbase |
| Pneumatic connection, port 5 |
G1/4 |
| Materials note |
Contains PWIS substances
Conforms to RoHS |
| Materials information for seals |
HNBR
NBR |
| Materials information, housing |
Wrought Aluminum alloy
Anodized |
| Screw material data |
High alloy steel, non-corrosive | |
|
| |
|
|
condition:
new
in original packaging: unopened,UNUSED,UNDAMAGED!
About Festo - Festo manufactures pneumatic and electrical components and systems to support customers with factory and process automation. Festo operates an extensive R&D programme investing 9.5% of sales annually, holds over 2,900 worldwide patents, introduces about 100 innovative new products to the market every year and has a product range of over 30,000. For more information about the company's products and services:
