EFECTOR100 IFT200 IFB3007-BPKG/M/V4A/US-104 sensor





Made in Germany

DESCRIPTION:

Inductive sensors

IFT200 IFB3007-BPKG/M/V4A/US-104 Inductive sensor Metal thread M12 x 1 Connector Increased sensing range gold-plated contacts Sensing range 7 mm [nf] non-flush mountable

 FOR A MORE INFORMATION:http://www.ifm.com/ifmhke/web/dsfs!IFT200.html



Electrical design		DC PNP
Output		normally open
Operating voltage [V]		10...36 DC
Current rating [mA]		100
Short-circuit protection		pulsed
Reverse polarity protection		yes
Overload protection		yes
Voltage drop [V]		< 2.5
Leakage current [mA]		< 0.5
Current consumption [mA]		< 10 (24 V)
Real sensing range (Sr) [mm]		7 ± 10 %
Operating distance [mm]		0...5.7
Switch-point drift [% of Sr]		-10...10
Hysteresis [% of Sr]		3...15
Switching frequency [Hz]		800
Correction factors		mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3
Ambient temperature [°C]		0...100
Protection		IP 68 / IP 69K *), II
EMC		EN 61000-4-2 ESD:  4 kV CD / 8 kV AD EN 61000-4-3 HF radiated:  10 V/m (80...1000 MHz) EN 61000-4-4 Burst:  2 kV EN 61000-4-6 HF conducted:  10 V (0.15...80 MHz) EN 55011:  class B
Housing materials		threaded sleeve: V4A (316S12); active face: PEEK (polyether ether ketone); lock nuts: high-grade stainless steel
Function display
Switching status LED		yellow (4 x 90°)
Connection		M12 connector; gold-plated contacts
Weight [kg]		0.025
Remarks		*) "COP"
Accessories (included)		2 lock nuts
Wiring

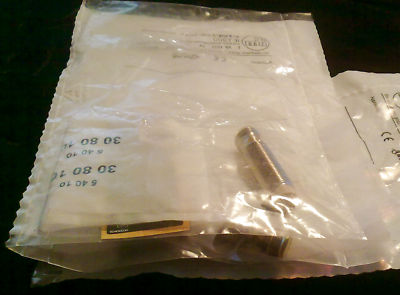

CONDITION: NEW in original packaging .

( include documents).

Weight [kg]0.025
