Do you suffer from sinus, mold, allergies, bacteria, headaches, influenza, bronchitis and household odors. This is a powerful UVC unit that is rated for Air systems 1-5 tons kills up to 99.9% of existing mold, mildew and airborne viruses and will prevent them from ever growing again and spreading.
Description: This HVAC unit comes with an electonic ballast (Advance Purevolt Electronic Ballasts -Featuring Intellivolt / EOL Protection) and an indicator LED. The bulbs are germicidal UVC and they are 99% efficent on a single pass. The installation is super easy and straight forward and comes with instruction manual and hardware. Installation is very easy 15 min or less, just cut 2 holes of 1 inch in your duct-work (template included) , slip the lamp inside and attach the aluminum strips (included in box) And plug it in, 9 ft cord. All units have an on-off switch with built in circuit breaker. This Atlas ST-UV36 covers up to 1500 sqft.
Features:

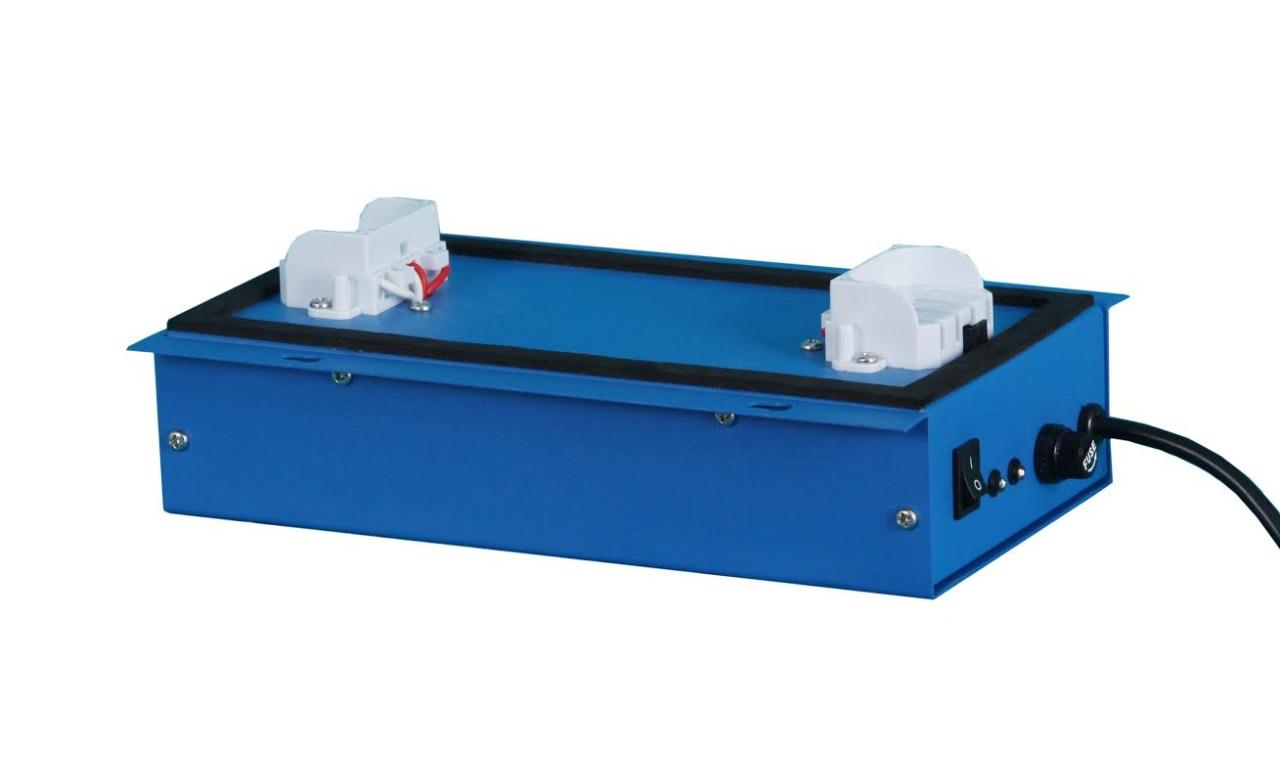

The HVAC ST-UV72 Modelair purifiers are more effective than any other type of air filter at capturing andeliminating microorganisms such as virus, bacteria, algae, mold and yeast in the air. It has a UVC Germicidal lamps are scientifically proven to kill 99.9% of airborne germs.This latest model of air purifier is a total home purifier, air sanitizers that utilizes dual 254nm lamps which are easily placed in the intake side of your existing heating/cooling system or directly above the AC coil. This unit comes with;
Drill two 2¡± holes for the bulbs
Plug bulbs into the unit
Place unit onto duct
Install with 4 sheet metal screws
Plug unit into any grounded 120v outlet (up to 277v)
Turn it on and your DONE
1-Year Limited Manufacturer's Warranty
Specifications:
Item
Model ST-UV72
UV bulb quantity
2 pieces
UVC
254 NM
UV bulb lifetime
13000 hours
Function
kill up to 99.9% of the bacteria
Power (W)
72
Voltage (V)
110V or 220V
Color
Blue (many colors for option)
Ozone
No
Working location
HVAC systems and indoors
Effective area
2400 sqft
Unit dimension
UV bulb: diameter 17mm, length 411 mm
Base: 254*160*56 mm
Color box dimension
475*260*125 mm
Net weight
1.5 KG
Gross weight
2.2 KG
Package
1 unit per color box
Kill 99.9% of the bacteria
No ozone
254NM germicidal UVC with 13K hours life
Easy installation less than 15 minutes
Installation: CAUTION: BE SURE TO WEARAPPROPRIATE PROTECTION AS CUTTING METAL IS LOUD AND PIECESMAY BE SHARP AND HOT (I.E. HAND, EAR, EYE, AND FACEPROTECTION)
Disconnect power to the HVAC system before installing the unit.
Cut out the template from the back page and tape it to the duct work in intended installation position.
Drill pilot holes 1-6 with a 3/32” drill bit where indicated.
Cut one (1) - 2 1/2” hole in duct as where indicated.
Remove any burrs and be sure duct surface is flat after cutting hole(s).4 5. Install the bulb in the unit by sliding the bulb in from the outside until the bulb snaps into place. Insert the unit into the metal duct work. If you touch the bulb with your hands, use a cloth to wipe any fingerprints from the bulb(s).
Attach the unit to duct work with the supplied 4 sheet metal screws using a ¼” nut driver. Make sure to tighten screws evenly. The unit has a factory installed gasket that ensures a tight seal between the unit and the duct work. Be sure the unit is flat against the duct work on all sides. CAUTION: DO NOT OVERTIGHTEN SCREWS.
Plug the unit into a grounded 120 volt power outlet.
Turn unit on and verify that the LED indicator light(s) located near the on/off switch is/are illuminated.
The switch is in the on position when the solid line on the switch is pressed down.
Reconnect the power to the HVAC system
The unit is now operational and does not need to be powered off unless cleaning or bulb replacement is necessary.
Note: NEVER LOOK DIRECTLY AT OR TOUCH A UV BULB WHILE ILLUMINATED.
