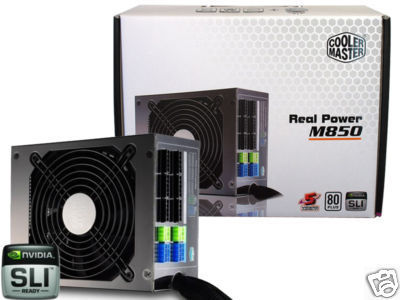

Cooler Master Real Power 850w
ATX POWER SUPPLY UNIT
THE ULTIMATE IN THE POWER FOR YOUR PC
FROM MOLEX TO SATA TO TWIN SLI & EVEN QUAD SLI
THIS CONSTANT 850W (1000W peak max)
A BEAST OF A POWER PACK BY ANY STANDARD
WILL MEET ALL YOUR PC POWER NEEDS
AND MUCH MUCH MORE
New & Retail Boxed
TESTED & BURNT IN AT THE FACTORY
THIS BEAST IS READY FOR RELIABLE USE
Designed for the Latest Technology:
Intel's Core i7, Core 2 Duo, Core 2 Quad, Core 2 Extreme,
AMD's Phenom II, Phenom x4, Phenom x3, Athlon 64, Sempron Processors
Quad SLI, Latest PCI-E Graphics Cards, SATA (Serial ATA) Devices, etc
With a HUGE 135mm fan
for Cool and Quiet Running
The real power for the ultimate high definition gaming experience is unleashed! Ultra-high end image reality calls for increasing processing power to handle the graphic complexity. Cooler Master's Real Power M850 Modular PSU answers to the call for the most reliable power source to back up the elite technology to deliver excellent performance and superb image quality. Real Power M is specially designed for NVIDIA's next generation high-end graphic cards. With six groundbreaking +12V independent output rails for exceptional power distribution, Real Power M reliably powers the cards while you enjoy the out-of-this-world gaming experience.
Features
- World's first six +12V rails for better power distribution in Quad-SLI and 2 ways server system
- Modularized cable design to eliminate clutter and improve airflow inside the chassis.
- Four 6 pin / Two 8 pin PCI-e connectors offer great future upgradeability
- Compliance with the newest Intel standard ATX 12V V 2.3
- Compliance with the newest SSI standard EPS 12V V2.92
- Ultra-silent operation with intelligent 135mm fan speed control (< 16dBA)
- Eco-design for energy and money saving by Active PFC.(>0.99)/ high efficiency(>85%)
- Multiple protection function provides full-scale protection for your components
- Safety Certification : CE, cUL, TUV, NEMKO, BSMI and FCC
Specification
| Model |
RS-850-ESBA |
| Type |
ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92 |
| Input Voltage |
90 ~ 264V (Auto Range) |
| Input Current |
12A @ 115Vac / 6.3A @ 230Vac |
| Input Frequency Range |
47 ~ 63Hz |
| PFC |
Active PFC (0.99) |
| Power Good Signal |
100 ~ 500 ms |
| Hold Up Time |
> 17 ms |
| Efficiency |
>85% Typically |
| MTBF |
>100,000 hrs |
| Protection |
OVP / OCP / OTP / OLP / Short / Full Protection |
| Output Capacity |
850 Watts Continuous |
| Max. Output Capacity |
1000 Watts |
| Dimension (W / H / D) |
150(W) x 86(H) x 180(L) (mm) |
| Operation Temperature |
0~50ºC Nominal Input Voltage |
| Safety |
CE / cUL / TUV / NEMKO / BSMI / FCC |
- Output:
- +5V 30A
- +3.3V 25A
- +12V1 18A
- +12V2 18A
- +12V3 18A
- +12V4 18A
- +12V5 18A
- +12V6 18A
- -12V 0.6A
- +5V/SB 3.5A
Connections
-
 1 x ATX 24pin for Motherboards
-
 1 x 8pin Cpu +12v for Motherboards
-
 1 x 4pin Cpu +12v for Motherboards
-
 8 x SATA for SATA components such as HDDs,CD/DVD Drives, etc
-
 2 x 'Mini-Plug' for Floppy Drives, etc
-
 10 x 4pin 'Molex' for IDE HDDs,CD/DVD Drives, etc
-
 4 x 6pin PCIE for Graphics Cards that require extra power (allows the use of QUAD SLI)
-
 2 x8pin PCIE for Graphics Cards that require extra power (allows the use of the LATEST CARDS)
Box Contents:
- Power supply unit
- Power Cord
- Instruction Manual + Warranty card
- Cables in a convenient protection bag
- Zip ties, screws
- Screw package
Manufacturer's Link: Cooler Master Real Power M850 Watt PSU
