Omega - OA 416 60cm - Retractable Rangehood

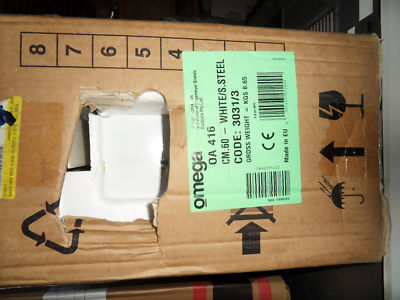

                       Brand New in Box. Was purchased for a house renovation that never happened, so regretfully I am now selling it at below cost. It is in perfect working condition and NOT a second. It has a white enamel body / Stainless Steel  front rail. All inspections welcome. Please check out my other household appliances for sale. All going cheap!

Made in EU

Description:

60cm wide white carcase. Stainless steel fascia rail. White metal visor. Built into cabinetry. Twin incandescent lighting.

Overview

• FINISH	white enamel body, stainless steel front rail
  INSTALLATION	built into overhead cabinetry
  MOTOR	100 watt single shaded motor with impellor
  CONTROLS	front mounted right
  SPEEDS	3 settings — OFF (telescopic deflector shut, LOW, MID, HIGH
  ILLUMINATION	two 40 watt SES tubular globes, separate on/off switch
  AUTOMATION	preset fan speed and light
  CAPACITY	210m³/hr
  FILTER	one-piece, 3-ply aluminium grease filter (removable)
  AIR EXTRACTION	ducted or recirculated (125mm diameter pipe required)
  OPTION	actived charcoal filter, 60cm code CF3061, 90cm code CF3062

• APPLICATION

  Mounted above cooktop in cupboard, suspended from shelf in cabinetry cavity. Retractable front fascia rail is fully integrated into cupboard line when rangehood is not in use. Front rail is replaceable by decor strip.

  AUTOMATION

  Preset fan speed and/or lights to operate automatically when rail is pulled outward. Manual override on fan and light.

  MAINTENANCE

  Easy lift-out grease filter is washable; removable light diffuser for bulb access. All clean lines for wipe-over maintenance.

  PERFORMANCE

  Highly-efficient air extraction of up to 350 cubic metres an hour further enhanced by large catchment area when all- metal visor is telescoped outwards.

  QUIETNESS

  37-53 dB. The motor/impellor encasement and flues are all smooth-walled to minimise air drag and hence noise, welded metal joints for no vibration.

  SAFETY

  Thermal overload protector or motor; fire-retardant hardened metal and mesh. VO self-extinguishing polycarbonate for motor housing and internal flue.

  DUCTING

  Ideally the extracted air is ducted direct to the atmosphere via the top exit. This direct ducting ensures maximum removal of the grease, oil particle-laden vapour and, importantly, the removal of the heat and odours, resulting in a more comfortable cooking environment. A collar is provided for the exit to fit 125mm round ducting, whether it be galvanised sheet piping, high temperature rated PVC or flexible tubing.

  RECIRCULATING

  When the cooking vapours cannot be ducted, simply redirect the extracted and filtered air into the kitchen via a duct pipe through the overhead cabinetry. A more frequent inspection and cleaning of the grease filter is recommended.

  charcoalfilter

  A purchasable accessory and easily fitted within the grease filter, it effectively diminishes cooking odours in the recirculation mode. These filters are not to be washed and are replaceable.

• height	170mm
  width	598mm
  depth	retractable visor 300mm
  packaged dimensions	60cm: 645mm x 390mm x 255mm = 0.65m³
  net weight	60cm: 8.65kg
  gross weight	60cm: 10.7kg
  capacity	310m3/hr gross
  noise rating	41–53 dB
  electrical supply	240 volt, 50 Hz
  electrical connection	1.25m connected power cord with 3-pin suitable for standard 10 amp GPO
  motor	single-shaded pole
  wattage	motor: 100 watt light: 2 x 40 watt SES tubular globes total: 1800 watt
  maximum current	1.0 amp
  air exit aperture	123mm diameter for 125mm (5") dia duct pipe
  supplied	• template for mounting • spiggot for duct pipe • screws • instructions for instalation, operation and maintenance



****This item is for pickup only from Caroline Springs, 3023. Payment preferred is COD on pickup within 7 days of purchase. Thankyou
