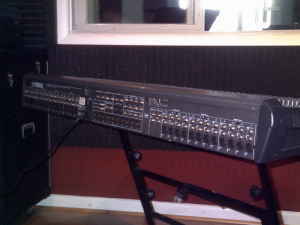

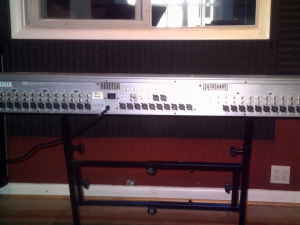

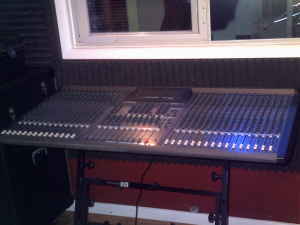

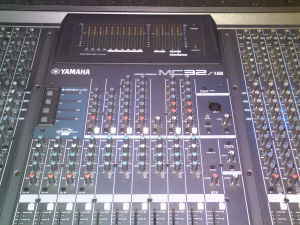

YAMAHA MC 32/12 MIXING CONSOLE

We are the original owner of this console and it has had very little use. This is a great mixer and comes with the original manual.  The snake is a Pro Co Roadmaster 150' long, 32 low impedance x 8 high impedance, and retailed custom ordered from Guitar Center for $1200.

FEATURES

• The MC 32/12 provides 28 monaural and 2 stereo input modules.  The output channels comprise stero outputs, 10 mix outputs, and two matrix outputs, and support a wide range of applications, from SR (sound reinforcement) to facility acoustics.
• Each monaural input channel offers a 26 dB pad, HPF, phase switch, 4-band EQ (HI-MID and LO-MID frequencies are variable), and a 100 mm-long full-stroke fader.  Also, phantom power can be turned on and off for every group of four inputs.
• Four stereo AUX returns and TAPE IN jacks are provided as standard.
• The master section of the console is located in the center are of the unit, facilitating operation.
• The master section provides output channels for MIX buses 1-10, with EQs and 100 mm-long faders.
• Each input channel and four stereo AUX returns include a PFL switch, and stereo bus, MIX buses 1-10, and Matrix 1-2 has an AFL switch, enabling you to monitor the input/output sources quickly.
• Using the GA Diversity function enables you to set MIX buses 1-4 to Variable mode, you can change the level of the signals sent out from the input channels.  This routing can be used as a conventional AUX bus.  In Fix mode, the level of the signals sent out from the input channels is fixed.  This routing can be used as a conventional group bus.  In this way, you can configure the bus for a specific purpose.
• The console has two independent matrixes.  You can mix MIX buses 1-4 and the stereo bus individually at the levels you desire and output them from the MATRIX OUT 1-2 jacks. This routing can be used as a mix for the foldback or for individual speakers and amplifiers.
• The INSERT I/O jacks are provided for all monaural input channels, the stereo bus, and MIX buses 1-4.  You can insert an external effect processor, if necessary.
• Talkback signals can be sent to any of MIX buses 1-4, MIX buses 5-10, and the stereo bus.
• C-R monitor output enables you to select PFL/AFL or TAPE IN as a monitoring source.
• The console's sturdy finish and rugged design assure it durability even under severe conditions and rough on-site usage.

-->
