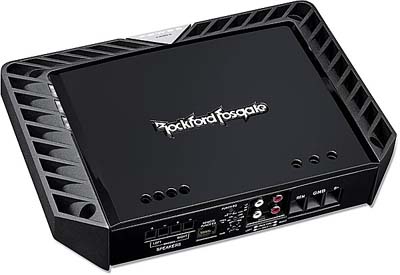

- Power Series Compact 2-Channel Amplifier
- RMS Power Output:
- 4 ohms: 120 watts x 2 channels
- 2 ohms: 240 watts x 2 channels
- Bridged, 4 ohms: 400 watts x 1 channels
- CEA-2006 compliant
- Dynamic Thermal Management cooling system
- Differential Input circuitry eliminates hum
- Variable high- and low-pass filters (50-500 Hz, 24 dB/octave)
- Variable bass/treble boost (0-18 dB at 45 Hz, 0-12 dB at 12k Hz)
- Optional remote bass/treble boost
- Class AB amplifier design
- MOSFET power and output stages
- Preamp inputs and outputs
- 4-gauge power and ground leads and a 100-amp fuse recommended — wiring and hardware not included with amplifier
- No
on-board fuses — when installing multiple amps in a system, an
additional 100-amp in-line fuse between the distribution block and the
amplifier is recommended
- Frequency Response: 20 Hz - 20 kHz
- Dimensions: 9-9/16"L x 11-3/8"W x 2-1/4"H
- 1 year PENNYFLEX warranty
|
