About Items:

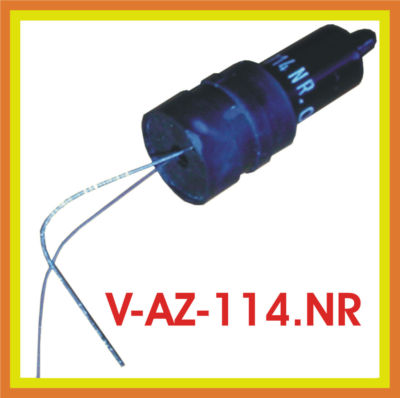

1 (one) new RFT (DDR) Geiger-Muller G-M beta adn gamma Counter Tube V-AZ-114NR  (military markings - 70014.NR).

Condition:  These Tubes ware made by military plant in former DDR.  New tubes, in original box directly from the factory. Surplus of military equipment, only in great condition. New, old stock. Best quality!

RFT (DDR) made glass Geiger Mueller tube is designed to detect beta and gamma rays.

The counter are designed to be operated in various dosimetric and radiometric devices.

Dimensions of the V-AZ-114.NR (70014.NR):
Length                                             41-42 mm (1.61 to 1.65) inches
Diameter (maximum)                        16 mm (0.63 inches)
Diameter glass ampoule                     10.7 mm (0.42 inches)
Length of lessons                              54 and 44 mm (2.13 and 1.73 inches)

Electrical characteristics:

Working Voltage  (tested)                  350 – 475 V

Operating Voltage  (tested)                400 V

Plateau Length  (tested) >                  80 V

Unfortunately we do not have the technical characteristics of the V-AZ-114.NR.

We know only that they approximately coincide with those of the SBM-20 as in the production of military product SBM-20 had shown a lack of security and were replaced with V-AZ-114NR.

Shown below are characteristics of SBM-20!

Hard Beta and Gamma GM Detector type СБМ-20 (STS-5)

Gas Filling                                               Ne + Br2 + Ar

Working Voltage                                      350 – 475 V

Recommended Operating Voltage              400 V

Initial Voltage                                           260 – 320 V

Plateau Length                                         80 V

Plateau  Slope                                          0,125 % /1V

Inherent counter background (cps)             0,45 Pulses/s

Pulse Sensitivity                                       24 Pulses/s

Minimum Dead Time (at U=400V)            190 micro sec

Working range                                         0,004 – 40 mkR/s

Working range                                         0,014 – 144 mR/h

Gamma Sensitivity Ra226                         29 cps/mR/hr

Gamma Sensitivity Co60                          22 cps/mR/hr

Interelectrode Capacitance                        7 pF

Minimum Anode Resistor                         1,0 MOhms

Recommended Anode Resistor                  5,1 MOhms

Load Resistance                                       5 - 10 MOhms

Working Temperature Range                    -40 +50 ^OС
