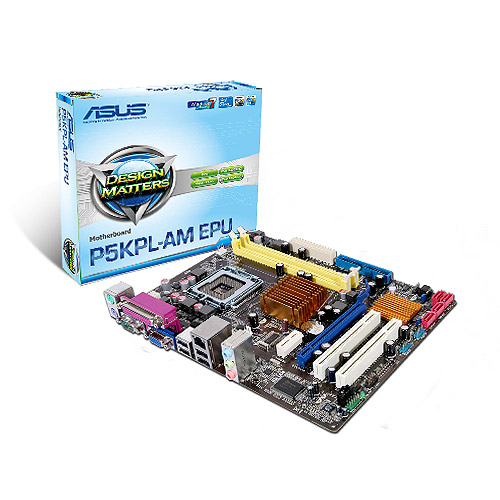

ASUS P5KPL-AM EPU LGA 775 Intel G31 Micro ATX Intel Motherboard - Retail

Model
Brand ASUS
Model P5KPL-AM EPU
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad/Core 2 Extreme/Core 2 Duo/Pentium dual-core/Celeron dual-core /Celeron Processors
FSB 1600(O.C)/1333/1066/800MHz
Supported CPU Technologies Intel Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
Chipsets
North Bridge Intel G31
South Bridge Intel ICH7
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR2 1066(O.C.)/800/667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1
PCI Express x1 1
PCI Slots 2
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4
Onboard Video
Onboard Video Chipset Intel GMA 3100
Onboard Audio
Audio Chipset VIA VT1708
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Onboard USB
Onboard USB 2 x USB connectors support additional 4 USB ports
Physical Spec
Form Factor Micro ATX
Dimensions 9.6" x 7.6"
Power Pin 24 Pin
Features
Features EPU
Turbo Key
FSB1600 (O.C)
5000Hrs VRM Solid Capacitors
