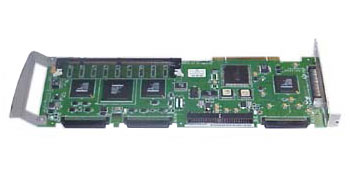

SCSI PCI ADAPTEC AAA-133U2 16MB RAID The three-channel AAA-133U2 is an affordable Ultra2 SCSI RAID card that
provides robust data storage fault tolerance and three times the
bandwidth of single-channel RAID cards for workgroup or departmental
servers. Designed to preserve PCI slot utilization while increasing
device connectivity, the AAA-133U2 features a powerful RAID co-processor
to increase performance. Advanced RAID features including RAID levels
5, 1, 0 and 0/1; bootable arrays; hot-swap drives; hot-spare drives;
S.M.A.R.T. drives and more, assures round-the-clock data recovery for
your business and mission critical data. The easy-to-use Adaptec
GUI-based CI/O Management Software removes the complexity of RAID
management and includes the ability to manage non-hard disk SCSI
devices, providing a total storage management solution. * RAID levels RAID 0, 1, 0/1, 5
* Data Transfer Rate Up to 80 MByte/sec per channel (three channels)
* Cache Memory 2MByte
* Device Support Up to 45 SCSI devices
* Bus Type 32-bit PCI
* Internal Connectors Three 68-pin, LVD One 50-pin
* External Connectors One 68-pin, LVD
* System Requirements Intel PC or equivalent with available PCI slot
* Operating System Windows 2000, NT? 4.0, UNIXWare 7.01, NetWare 4.2 & 5.0
* Software in Kit ARRAYCONFIG U2 CI/O Management Software
* Physical Dimensions Full-size PCI card (12.283 x 4.2 inches, 31.191 x 10.668 cm)
* Operating Temperature 0? C to 55?C
* Power Requirements 4 amps @ +5V
|
