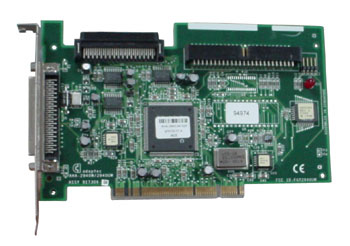

Adaptec SCSI PCI 2940UW - Pulls - Tested 68 Pin External , 50 & 68 Pin internal. Supports up to 15 devices total with all connectors combined. (50 pin supports 6 only) Adaptec Product Specifications: AHA-2940UW Product Specifications | Data Transfer Rate | | | 40 MByte/sec | | Device Support | | | Up to 15 devices total | | External Connector(s) | | | 68-pin High-Density | | System Bus interface | | | PCI local bus |
General Specifications | Supported Protocols | | | SCSI-1
SCSI-2
SCSI-3
WIDE UltraSCSI | | Advanced SCSI Features | | | multi-threaded I/O,
scatter/gather,
tagged queuing,
disconnect/reconnect,
synchronous and asynchronous data transfer | | Electrical Drivers | | | Single-ended, active, programmable via SCSISelect configuration utility |
Electrical and Mechanical Specifications | Board Dimensions | | | 6.87" x 3.87" (17.0 cm x 9.5 cm) | | Operating Characteristics | | | 32 F to 131 F (0 C to 55 C) 10% to 90% Relative Humidity, non condensing | | Storage Characteristics | | | -67 F to 185 F (-55 C to 85 C) | | MTBF (mean time between failures, Bellcore) | | | 494,641 hours |
|
