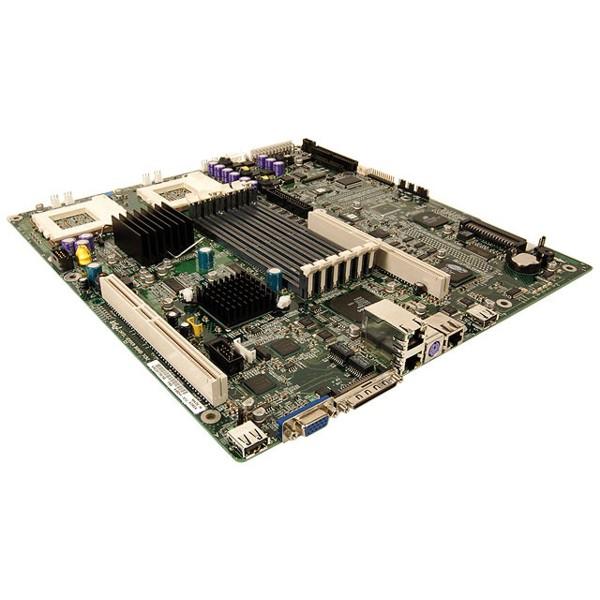

The Intel ServerBoard SCB2 accommodates up to two Intel? Pentium? III processors with 512-KB L2 cache, providing powerful performance for demanding server workloads. Two independent 64-bit/66-MHz buses, one independent 32-bit/33-MHz bus, and aTriple Peer PCI architecture enable high, balanced I/O throughput. Six DIMM sites allow for up to 6 GB ECC SDRAM for memory-intensive applications. All component locations and design are thermally optimized for 1U and 2U rack systems. Processor Class : Intel? Pentium III Processor(s)
Number of Processors Supported : 2
Chipset Used : Server Works ServerSet III HE-SL
Front Side Bus Supported : 133 MHz
Memory Types Supported : 6 GB (max) Registered ECC SDRAM 133 MHz DIMMs
Number of Memory Slots : 6
Video Integrated : ATI RageXL SVGA PCI video controller with 8 MB of video memory
Audio Integrated : None
Network Controller On-Board : 2x Intel Fast Ethernet Controller supports 10BASE-T and 100BASE-TX
Onboard Device : 2 serial ports
IDE Mode Supported : 2 Parallel ATA IDE interface with ATA-100, RAID-0,1 support
SCSI Controller On-board : Adaptec AIC7899 Dual Channel - 2 Ultra160/LVD channels
AGP Slot : None
Slots Available : 2 PCI 32bit/33MHz
1 PCI 64bit/33MHz
Number of USB Ports : 2
Form Factor : SSE Thin E-Bay (12 x 13 Inches)
Package Includes : Server Board
Floppy ATA Cables
BULK ONLY No software or IO Sheild
|
