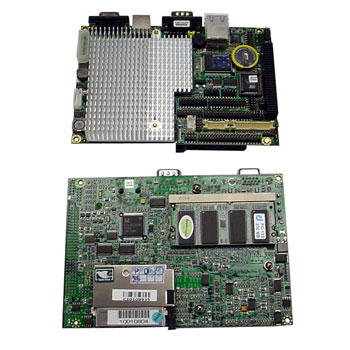

The GENE-6310 Rev.B is an all-in-one VIA Eden Series CPU based single board computer (SBC) with: ** an Integrated AGP 4X2D/3D Graphics Accelerator
** an audio controller
** 10/100 Base-T Ethernet Controller
** Dual channel LVDS interface
** PC/104 plus expansion capability
This compact (only 5.75"x 4") unit offers all the functions of a single board computer, but still fits in the space of a FDD drive. Onboard features include: ** four serial ports (three RS-232, one RS-232/422/485)
** one multi-mode parallel (ECP/EPP/SPP) port
** pin header for 4 USB (Universal Serial Bus) ports
** floppy drive controller
** keyboard/PS/2 mouse interface
The built-in high speed PCI-EIDE controller supports Ultra DMA-33 master mode. Up to two IDE devices can be connected,
including large hard disks, CD-ROM drives, and tape backup drives, etc.
|
