General

• Power Source: 12 V DC
• Panasonic AG460
• Power Consumption: Recording mode: 9.8W (Battery Operation)
• Operating Temperature: +32'F~+ 104'F (0 ~40'C )
• Operating Humidity: 10 ~ 80%
• Weight: Approx 5.95 lbs. (2.7kg) (without battery pack)
• Dimensions ( W x H x D ): 5 1/16" x 9 1/2" x 18 1/2" (130 x 245 x 476 mm )

System

• Television System: EIA standard NTSC color signal: 525 lines 60 fields
• Panasonic AG460u
• Video Recording System: Four rotary heads, Helical scanning system
• Modulation System:
  Luminance: FM azimuth recording
  Color Signal: Converted subcarrier phase shift recording

Tape Transport

• Tape Speed: SP: 33.35 mm/sec
• Panasonic AG-460
• Tape Format: S-VHS / VHS tape
• Recording / Playback Time: 160 min. with NV-T160
• FF / REW Time: Less than 12 min. with NV-T120

Video

• Video Horizontal Resolution:
  S-VHS: More than 400 lines ( S-Video Out)
  VHS: More than 250 lines
• Panasonic AG-460u
• S / N Ratio: Video: More than 45 dB (VHS)

Audio

• Frequency Response:
  Hi-Fi: 50Hz ~ 20 kHz
  Normal: 80 Hz ~ 8kHz

• S/N Ratio:
  Hi - Fi: More htan 47 dB
  Normal: More than 41 dB
• Audio Track:
  1 Track ( Normal )
  2 Channels ( Hi-Fi )

Input Level

• Audio Input: Mic in (M3): - 70Db 600 or more unbalanced

Output Level

• Audio Output: Audio Out (RCA): -8dB 4.7K unbalanced
• Video Output: Video Out (RCA): 1.0 Vp-p 75 unbalanced
• S-Video Output: S-Video Out: 1.0 Vp-p 75 unbalanced

Camera

• Image Sensor: 1/3 inch 2 CCD Image Sensor
• Lens:12.1 Variable speed control Power zoom lens with Digital AI Auto Focus
  F1.6
  Focal length 5.6 ~ 67mm
  Auto Iris/Manual Iris
  Filter Diameter 49mm
• Viewfinder: 0.7 inch electronic viewfinder
• Standard Illumination:1,400 lux
• Minimum Required Illumination:1 lux (Digital Gain Up Mode )

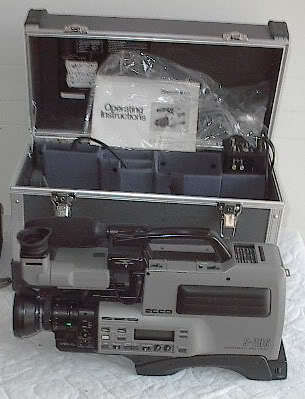

Comes with hard case, power supply with built in rf modulator

---

On May-23-10 at 00:40:20 PDT, seller added the following information:
