Overview:

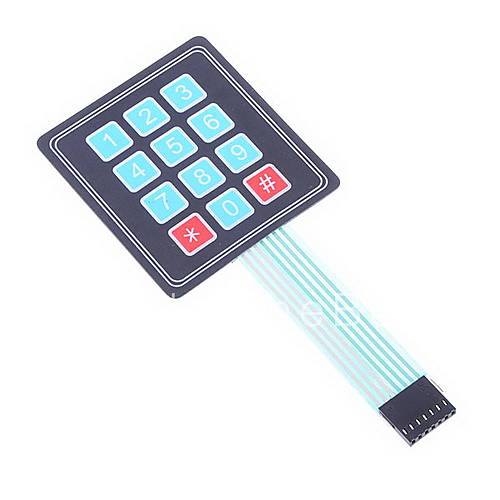

• 12-KEY Membrane Switch Keypad.
• Quantity: 1 piece.
• Pad Size: 77 x 70 x 0.8mm
• Transparence cable length: 86mm

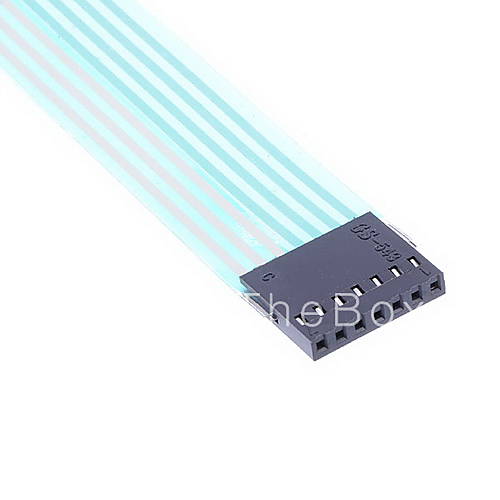

• Connector: 7 pins (Pitch 2.54mm)
• Mounted: Adherence
• Maximum Circuit Rating: 35VDC, 100mAa
• Insulation Resistance: 100M Omh, 100V
• Dielectric Withstand: 250VRms (50-60Hz, 1min)
• Contact Bounce: <=5ms
• Life Expectancy: 1 million closures
• Operation Temperature: 0 to +70 centigrade
• Humidity: 40 centigrade, 90%-95%, 240 hours

Specification:

• Weight Approx:12g
• Size Approx:8 x 6 x 1 cm
