A practical tool for electrician use.It is easy to operate and the readings indicated directly on the screen.It can be use to overhaul all kands of circuit boards.It is also an ideal teaching instrument for students.

Features:
3½ digits, 7segment,0.5＂high LCD Display
Max display: 1999, Auto polarity display
Small and compact design
Overload protection on all ranges
Sampling 2~3 times readings per second.
Diode assembly test / Transistor P-N junction test/Transistor hFE test.
Low battery voltage indication.

Specifications:

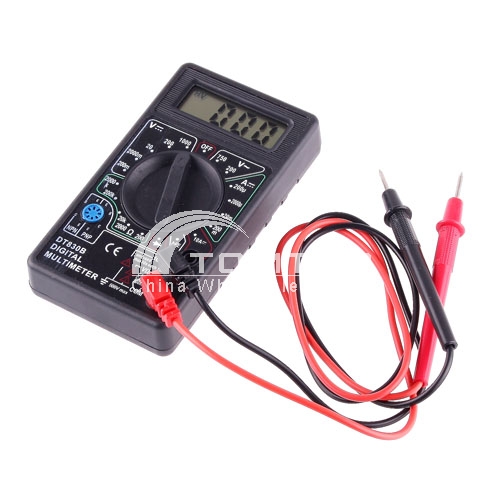

Model:DT830B
Measuring range:
Max AC Current:10A
Max AC Voltage range:1000V
Max DC Voltage range:750V
Resistance Measurement:200 Ohm-2000K Ohm range
Scale degree&Accuracy:

Showed as in the table:

Function	Range	Resolution	Accuracy
DC Voltage	200mV	100uV	±(0.5%+3)
	2000mV	1mV
	20V	10mV
	200V	100mV
	1000V	1V	±(0.8%+5)
AC Voltage	200V	100mV	±(1.2%+8)
	750V	1V
DC Current	200uA	0.1mA	±(1.0%+5)
	2000uA	1uA
	20mA	10uA
	200mA	100uA	±(1.2%+8)
	10A	10mA	±(2.0%+8)
Resistance	200Ω	0.1Ω	±(1.0%+8)
	2000Ω	1Ω	±(1.0%+2)
	20KΩ	10Ω
	200KΩ	100Ω
	2000KΩ	1000Ω

Power Supply:9V 6F22 battery
Dimension:125x70x23mm
Colour:black
Package included:
1 x Digital Multimeter
2 x Test Leads line(red&black)
1 x Manual
1 x 9V battery.

Unit net weight:110g
Unit packing gross weight:160g
Note:In order to get more accurate result,please select matching tap positions.To ensure in safety,better not measure the voltages over range.
