Specifications:

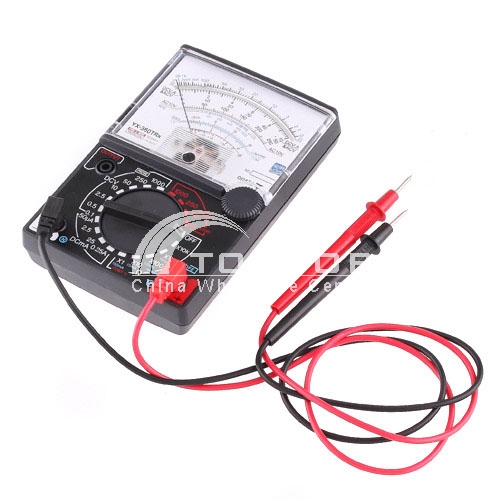

Model:YX-360TRN
Diode assembly test
Transistor P-N junction test
Transistor hFE test.
Measuring range:
Max AC Voltage range:1000V
Max DC Voltage range:1000V
Max DC Current:10A
Resistance Measurement:0 Ohm-20M Ohm range
Scale degree:show as in table

Test	Range Tap Position	Index Dial To read	Scale Factor	Accuracy at FSD	Middle index dial reading
DC Voltage	0.1V	0�0	x0.01	±3%(1000V;5)	0.05V
	0.5V	0ï½?0	x0.01		0.25V
	2.5V	0ï½?50	x0.01		1.25V
	10V	0ï½?0	x1		5.0V
	50V	0ï½?0	x1		25V
	250V	0ï½?50	x1		125V
	1000V	0ï½?0	x100		500V
AC Voltage	10V	AC 10V	x1	±4%(1000V;5)	5V
	50V	0ï½?0	x1		25V
	250	0ï½?50	x1		125V
	1000V	0ï½?0	x100		500V
DC Current	50uA	0�0	x1	±3%(10A;5)	25uA
	2.5mA	0ï½?50	x0.01		1.25mA
	25mA	0ï½?50	x0.1		12.5mA
	0.25A	0ï½?50	x0.001		0.125A
	10A	0ï½?0	x1		5A
Resistance	x1	Ω	x1	±3%	20Ω
	x10		x10		200Ω
	x100		x100		2KΩ
	x1K		x1000		20KΩ
	x10K		x10000		200KΩ



Dimension:142x98x28mm
Colour:black
Package included:
1 x Multimeter
2 x Test Leads line
1 x Manual

Unit packing gross weight:260g

Note:In order to get more accurate result,please select matching tap positions.To ensure in safety,better not
measure the voltages over range.Specially,dont't make a mistake in wiring because of polarity discrepancy.Or
it could damage the meter.
