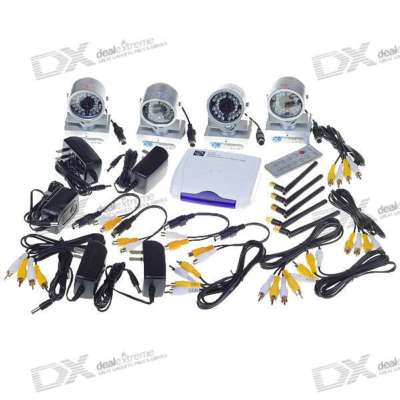

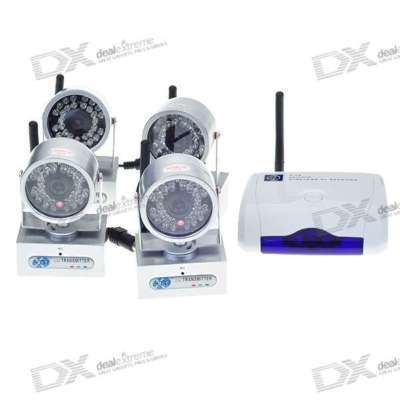

Description:

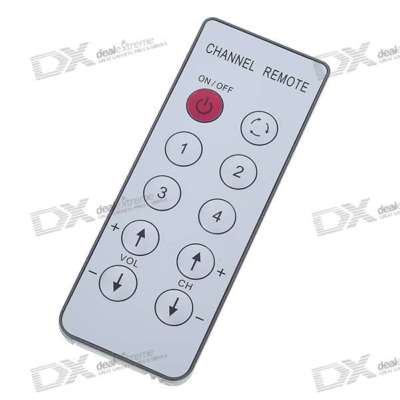

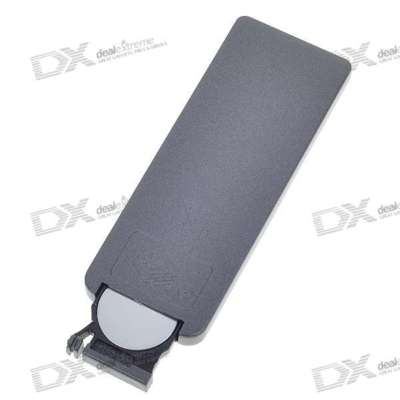

- Switch the receiver's channels by remote control
- 380 TVL of horizontal definition

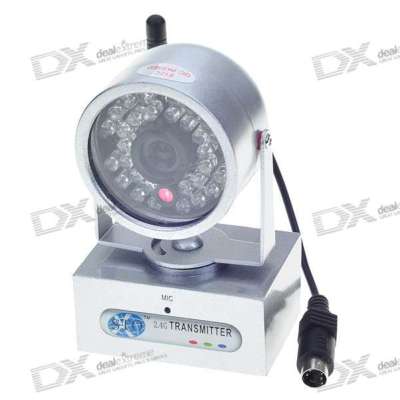

- Camera with 30 LED infrared lamps and 15m night vision distance
- Receiver with 4 channels exchangeable by auto & manual
- 300-500m transmission distance without block
- Audio monitoring with microphone in camera
|
|
Transmission
Frequency | ISM 2,400 MHz~2,483 MHz 4CH |
Modulation Mode | FM |
Unobstructed Effective Range |
300-500m(Without Block) |
Operating
Temperature | 0'C~ +50'C / +32'C~ +122'C |
Storage Temperature | -20'C ~ +60'C / -4'C
~ +140'C |
Operating
Humidity | 85%RH |

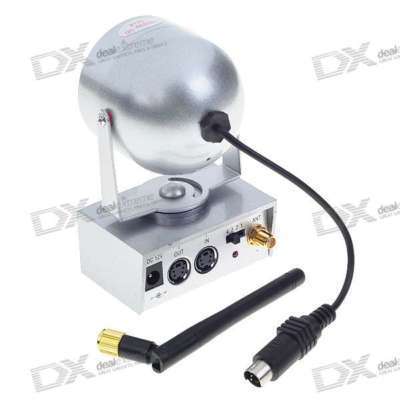

CAMERA |
TV System | PAL |
NTSC |
Validity Pixel | 628(H) x 586(V) | 510(H) x 492(V) |
Image Device | 1/3" OmniVision CMOS |
Horizontal Definition | 380TV Line |
Angular Field of View | 45° (f=6mm) |
Minimum Illumination | 0Lux |
Scanning Frequency(H) | 15.625KHz | 15.734KHz |
Scanning Frequency(V) | 50Hz | 60Hz |
Power Adapter | DC 12V/500mA |
Dimension | 68x52x105mm |
Weight | 245g |

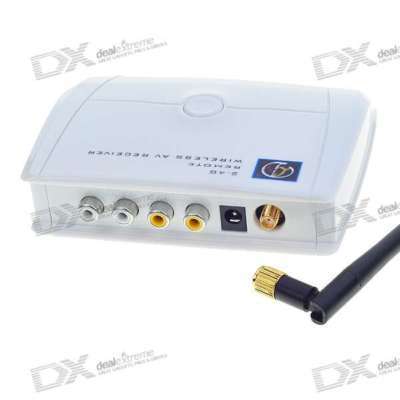

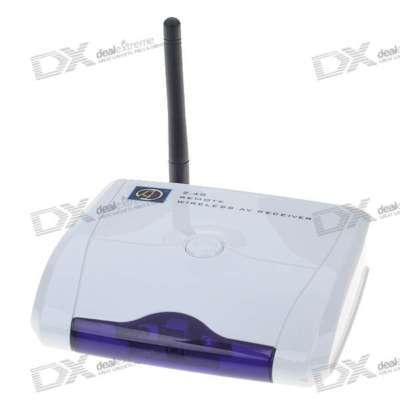

RECEIVER | Receiving Sensitivity | =-85dBm |
Video Output | 1Vp-p@75O,S/N>38dB |
Audio Output | 10KO/200mVp-p |
Power Adapter | DC 12V/500mA |
Dimension | 120x99x30mm |
Weight | 165g |
Antenna | 50ohm SMA |
Intermediate Frequency | 480MHz |
Frequency Stabilization | ± 100MHz |
