Product Introduction:

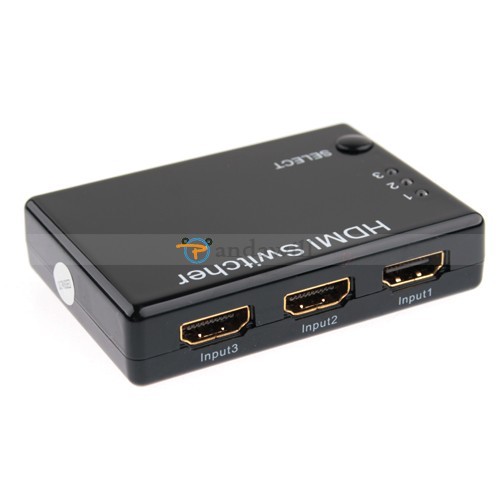

The 3x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to the display unit. Three inputs accommodate the simultaneous connection of up to three high definition video sources, such as PS3, satellite HD Receiver, HD DVR systems and HD DVD/Blueray DVD players.
The output sends the high definition audio/video signals to a high definition display.
Switching is done via the IR remote that is provided with the units.

Intelligent Switching built-in:
When any connected HDMI source devices are on and outputting “Live” HDMI signals to the switcher, the switcher will automatically select the “Live” HDMI channel.
If more than 2 HDMI source devices are outputting “Live” HDMI signals in the same time, the switcher will automatically select the channel with smaller channel number (Priority=Channel 1> Channel 2> Channel 3> channel 4).


Product Features:
Full HD 1080P
Support 12-bit Deep Color
HDMI 1.3
High performance up to 2.5Gbps
Maintains high resolution video - crisp and sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved
Discrete IR remote (included)
HDMI pass-through
HDCP pass-through


Product Specifications:
Operating temperature range:-5 to +35 (-41 to +95)
Operating humidity range:5 to 90 % RH (no condensation)
Video Amplifier Bandwidth:140 MHz
Input Video Signal:0.5-1.0 volts p-p
Input DDC Signal:5 volts p-p (TTL)
Maximum Single Link Range: 1280 x 1024, 1080P
Video format supported:
VGA: 640x480, 800x600, 1024x768, 1280x1024
DTV/HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P
Output Video: HDMI + HDCP1.0 / 1.1
Vertical Frequency Range: 60Hz
Dimensions: 270mmW x 40mmH x 200mmD


Package Content :
3 Port HDMI Switcher
External IR Receiver
Remote Control

Package weight: 210g
