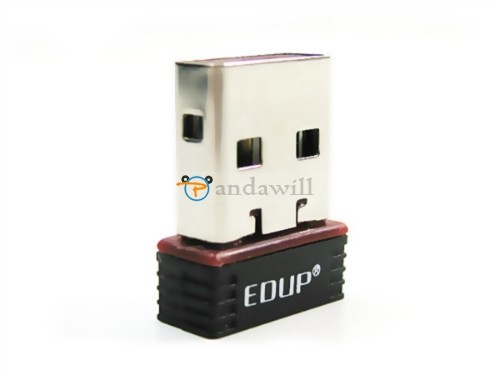

This is a mini wireless adapter, which is compatible with 802.11b/g/n to give you the fastest way in internet. The compact, mini design makes this adapter ultra portable and easy to take with you anywhere. In addition, It is designed to provide excellent performance with minimum power consumption and enhance the advantages of robust system and cost-effective.

Feature:

Utlra-mini sized
Faster transmission
Stronger sinal gain

Data transfer rate up to 150Mpbs
Maximum close to the wired network
Lower delay on game and movie

USB 2.0 and 1.1 compliant
Easy installation

Specification:

Chip: Realtek RTL8188CU
Standard: IEEE 802.11b/g/n
Frequency range: 2.4-2.4835 GHz
Channel: 13
Support network protocol: CSMA/CA with ACK
Transmission mode: DSSS
Sensitivity: 54: -68dBm@10% PER, 11M: -85dBm@8%PER, 6M: -88dBm@10%PER, 1M: -90dBm@8%PER, 256K: -105dBm@8%PER (typical value)
Security features: support 64/128/152 bits WEP data encryption, WPA encryption, IEEE support 802.11 x, TKIP, AES encryption
Support system: Win 2k/XP/Vista/Win 7/Mac/Linux
Interface type: USB
Size: 18 x 14 x 6mm
Weight: 2g
Package weight: 28g

System requirement:

CPU: 200MHz or above
Memory: 64MB or above 128MB recommendedWindow XP/ Vista/ 7, Mac OS, Linux

Note: Please be ware that the driver software UI of this wireless LAN adapter is Chinese version. Here is the setup steps.

Driver installation:

1. Please choose the matched driver version for your operating system. (Here choose the Windows version for demonstration) Make sure the adapter is plugged before installation.

2. Click to run "Setup", then click the option in the red frame.

3. Wait till the setup is completed.

4. Choose 1 for restart computer immediately or choose 2 for restart later.

5. Installation successful.

Package included:

1 x nano USB wireless LAN adapter
1 x driver CD
