Description:

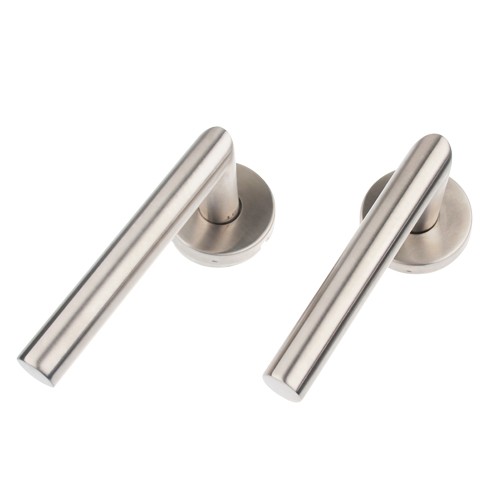

HH001 mitred stainless steel lever on rose is a popular design for contemporary flats and apartments. Based on a 19mm diameter bar, it is cut and mitred at 90 degrees.

Contract Furniture in Stainless Steel

Stainless steel is resistant to corrosion and environmental influences and is suitable for both door and window furniture in both internal and external applications. The surface finish is easy to care for.

Features:

Stainless steel grade 304.
Back to back fixing.
Elegant, curved lever design and anti-tarnish for long lifetime.
Universal fits all doors, easy installation. For residential single and multi-family hall/closet doors.
Featuring the security and quality you expect from contemporary styles that are ideal for residential and multifamily properties.
Item is reversible and therefore works for both right and left handed doors.
Tough enough to against heavy use, impact, strength, resistance, and abuse.
Suitable for fire doors.

Specifications:

Model No.	HH001
Material	Stainless steel, Grade 304
Finish	Satin stainless steel
Lever	Hollow lever, applicative for both left and right hand
Lever diameter	19mm
Lever length	130mm
Projection	60mm
Rose	Brass insert rose
Rose diameter	53mm
Rose height	9mm
Rose thickness	0.8mm
Escutcheon	Standard key escutcheon
Escutcheon diameter	53mm
Escutcheon height	9mm
Escutcheon thickness	0.8mm
Base	Zinc-plated iron base with two ф5.5 screw hole
Base diameter	51mm
Base height	8mm
Base thickness	1mm
Spindle	8x8x110mm quadrangle Zinc-plated spindle
Operation	Sprung lever handle
Packaging	Sold in pairs complete with 8mm spindle
Fixings	M4*65 Ni-plated back to back fixings, M4*16 nuts, M6*6 hex socket set screws, 3mm Zinc-plated hexagonal bar, M4*20 philips screws
Maximum Door Thickness	35-75mm
Package weight	0.52kg
Mechanical warranty	10 year manufactures mechanical warranty
Finish warranty	5 year manufacturers finish warranty

Package included:

2 x Lever handle on rose
2 x Escutcheon
2 x Escutcheon base
1 x Zinc-plated spindle
4 x M4*65 Ni-plated back to back fixing
4 x M4*16 nut
8 x M4*20 philips screw
2 x M6*6 hex socket set screw
1 x Zinc-plated hexagonal bar
