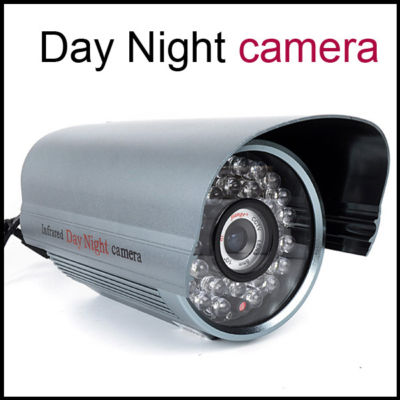

Overview:
This is a 30 IR LED night vision camera. It is waterproof and suitable for outdoor use. This camera adopts the special material and the weight is lighter than the common camera.
Good looking, Special professional design, Waterproof outdoor use.
Specifications:
Image Device: 1/3'' Sony CCD
Horizontal Resolution: 420 TV Lines
Number of Pixels: CCIR: (H)500x(V)582; EIA: (H)510x(V)492
Scanning System: PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
IR LED: 30 IR LEDs (Dia. 5mm)
Visible Distance: 20m
Built-In Lens: 8mm
Lens for option: 6mm
Sync System: Internal Synchronization
Video output: 1Vp-p 75 Ohm , Negative
White Balance: Auto
S/N Ratio: More Than 48dB (AGC off)
Gamma Characteristic: 0.45
Minimum Illumination: 0 Lux (LED ON)
Electronic Shutter: PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec,
Power Consumption: 12V±10%DC, 500mA
Operation Temperature: -10C ~ + 50C, RH 95% Max
Storage Temperature: -20C~ + 60C, RH 95% Max
Housing: Grey
Size: 168*85mm (L*D)
Weight: 725g (with packing)
Package Includes:
1 x 30 IR LED 1/3 SONY CCD Waterproof Outdoor Day Night Camera (DCCM0497)
