Overview:
The high-quality camera is designed for closed-circuit surveillance. It adopts the latest japanese technology of sensor and driver. Their characteristic are high clear, strong anti-jamming, rich and realistic color, high stability, and widely applicable to indoor, outdoor, day and night, antomotive rear view ect. Moreover they have small volume, lightweight, high integrative level, easy and convenient fix and use.
Specifications:
Image Sensor: 1/3" Sony CCD
Horizontal Resolution: 480 TVL
Pixels: PAL:500(H)x582(V) NTSC:510(H)x492(V)
TV SYSTEM: PAL/NTSC
IR LED: 35 Pcs
Sync System: Internal Synchronization
Usable Illumination : 0 Lux (Infrared Lamps Turn On)
S/N Ratio: 48dB(AGC Off)
Gamma Characteristic : 0.45
Video Output: 1.0Vp-p 75 Ohm (BNC)
Scanning System: PAL:625 lines 50 Field c,NTSC:525 lines 60 Field c
Electronic Shutter Time: PAL 1/50-100,000Sec,NTSC 1/60-1/100,000Sec
Operation Temperature: -10 - +50 RH95% Max
Storage Temperature: -20 - +60 RH95% Max
White Balance: Auto
IR View Distance: 25 M
Power Supply: DC 12V 300mHA
Size: 126*58mm (L*D)
Color: Black
Weight: 625g (with packing)
Package Includes:

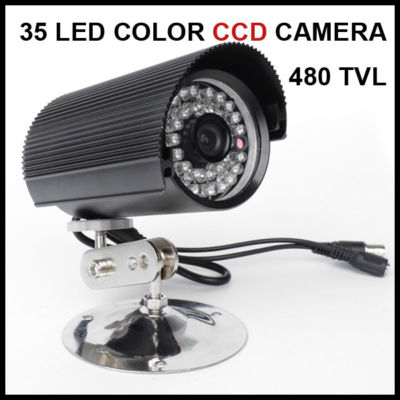

1 x Outdoor Wateproof 35 IR LED 480TVL Sony CCD Color CCTV Camera (DCCM0496)
1 x Multi Directional CCTV bracket
3 x Mounting screw (concrete or wood use)
1 x Allen key
