Factory Refurbished - 2 Year Manufacturer Warranty

Power and processing:

• • 11-channel amplifier
    • 150 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
    • symmetric Class AB amplifier design
  • two ESS Sabre ES9026PRO 32-bit Hyperstream® II DACs provide high dynamic range and low distortion
  • Integra engineered chassis and audio signal path for optimum noise reduction and signal clarity
  • Dolby® and DTS® surround sound decoding
    • Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers for ultra-enveloping home theater sound
  • IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
  • THX Certified Select™ theater reference sound
    • ensures you get the same reference volume level of a commercial theater in rooms where the screen-to-seat distance is about 12 feet
    • includes a variety of THX listening modes for movies, music, and gaming
  • Auro-3D surround mode with room calibration available via a future firmware update
  • Dirac Live advanced speaker calibration system helps fine-tune your system to best match your room's acoustics (microphone included)
    • Dirac Live Bass Control ready (single or multi) as an optional user upgrade
  • Speaker Combo mode implements the precise crossover values for specific new Klipsch speakers, maximizing sound quality

Streaming music options:

• • plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 11.2 MHz)
  • built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
    • includes support for Pandora®, TIDAL, Amazon Music HD, and Spotify® (subscription required for some services)
  • compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
  • Apple AirPlay 2 lets you easily stream from an iPhone® or iPad® and ask Siri to play Apple Music®
  • Chromecast built-in for streaming music from the cloud with compatible mobile apps
  • built-in Bluetooth 4.2 for wireless music listening with smartphones, tablets, and compatible computers
    • Bluetooth transmission lets you send audio from the receiver to Bluetooth-enabled headphones
    • supports high-quality AAC, aptX®, and aptX HD audio streaming
  • works as a Roon player (requires subscription and Roon Core running on your network)
    • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
  • DTS Play-Fi® multi-room music listening via Integra Music Control App
  • works with Amazon Alexa and Google Assistant voice control assistants

HDMI features:

• • HDMI audio/video switching: 7 in, 3 out, including 1 front-panel input
    • 6 inputs and 2 outputs support 8K/60Hz and 4K/120Hz video (HDMI 2.1)
    • 1 front-panel input supports 4K/60Hz video (HDMI 2.0)
  • HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
  • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
    • supports HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)
  • supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
    • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
  • gaming-optimized video processing technologies for a smooth, lag-free gaming experience
    • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

Multi-room audio:

• • three-room/three-source output
  • Zone 2 and Zone 3 stereo preamp outputs for use with optional external receivers or amplifiers
  • Zone 2 and monitor HDMI output
  • powered 2nd-room and 3rd-room output
    • allows up to 7.4-channel sound in main room when all three zones are in use

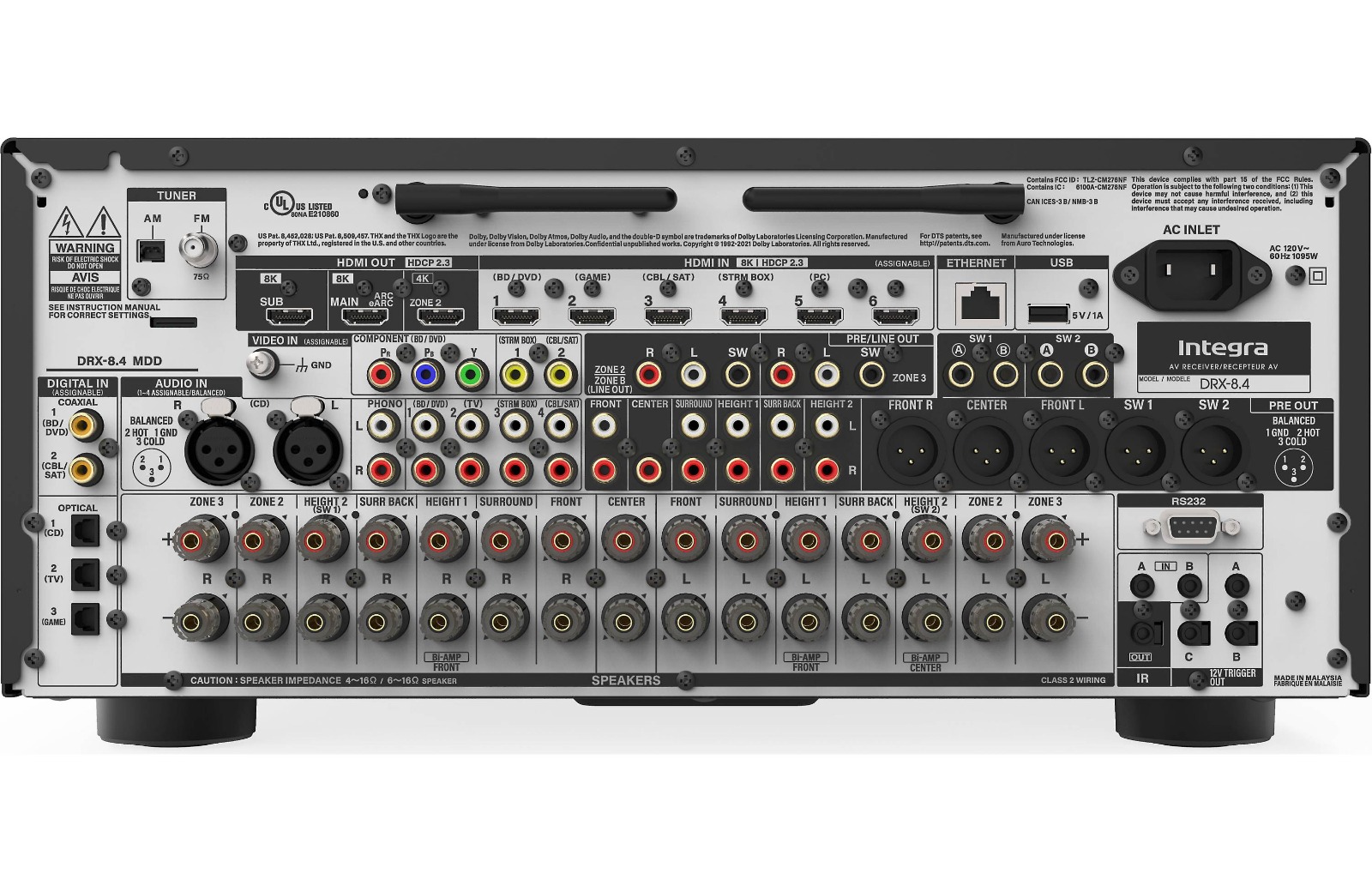

Other connections:

• • digital audio inputs: 3 Toslink optical, 2 coaxial
  • 4 analog stereo RCA line-level audio inputs
  • MM (moving magnet) phono input for connecting a turntable
  • 2 composite video inputs
  • 1 component video input
  • 11.4-channel preamp outputs for connection to an optional external amplifier
    • different signals are output from the subwoofer 1 and subwoofer 2 terminals
    • the same signals are output from "A" and "B" of subwoofer 1, and the same specification applies to subwoofer 2
  • 2 powered output channels selectable for driving independent passive subwoofers
  • balanced XLR connections
    • 1 audio input
    • Front L/C/R outputs
    • 2 independent subwoofer outputs
  • USB port for audio playback from USB flash drives (rear-panel)
  • outputs for 15 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Height 2 L/R, Zone 2 L/R, Zone 3 L/R)
    • receiver can power a maximum of 11 channels at once
  • full-sized front-panel headphone jack
  • RS-232C and IR (infrared) remote connections for use with optional third-party controllers
  • 12-volt trigger outputs for sending on/off commands to optional external components
  • removable power cord

Dimensions and warranty:

• • 17-3/16"W x 7-13/16"H x 19-7/16"D (10-1/8" w/ antennas extended)
  • weight: 49.6 lbs.
