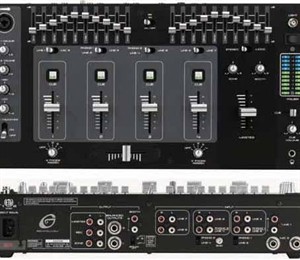

Gemini Sound Products is proud to announce the reissue of a classic mixer, introducing the PDM-01 four channel rack mounted mixer. This unit features 7 line, 3 mic, & 2 phono/line convertible inputs, dual 10 band graphic EQ w/on/off switch, assignable crossfader, removable Rail Glide cross fader, push-button cueing, auto talk over feature, a BNC lamp port & much more. The latest PDM series, one of Gemini's longest running series, is the hallmark to a new beginning in a long history w/the conception of innovative DJ products. Available in three styles, find the PDM mixer that fits your style.

* 4U, 19"" rack mounted mixer
* 4 stereo channels
* 7 lines, 3 mic, 2 phono/line convertible, inputs
* Master, record, booth & zone RCA outputs
* balanced master output
* 2 mic inputs
* Dual 10 band graphic EQ w/on/off switch & blue LED indicator
* Master line fader control w/stereo/mono switch
* Assignable cross fader
* Removable, user replaceable Rail Glide cross fader
* Push button cue per channel w/green LED indicator
* CUE/PGM fader control allowing cue mix
* Rotary zone, booth, & cue volume controls
* XLR-1/4"" combo Mic input
* 2 band rotary Mic EQ & volume controls
* Talk over feature
* Power button
* BNC lamp port
* headphone input
INPUTS:
* Phono: 3 mV, 47 KOhm
* Line: 150 mV, 27 KOhm
* MIC 1, 2, & 3: 1.5 mV, 2 K Ohm Balanced
* Bass: 12dB
* High: 12dB
OUTPUTS:
* Amp/Booth: 0 dB 1 V, 400 Ohm
* Max: 20 V Peak-to-Peak
* Rec: 150 mV, 5 KOhm
* Zone: 0 dB 1 V 400 Ohm
* Balanced: 6 dB 2 V 400 Ohm

* Frequency Response: 20 Hz - 20 KHz +/- 2 dB
* Distortion: 0.02%
* S/N Ratio: Better Than 80 dB
* Talkover Attenuation: -16 dB
* Headphone Impedance: 16 Ohm
* Power Source: 115/230 V, 60/50 Hz, 20 W
