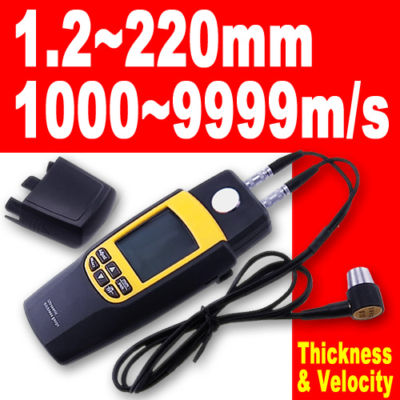

Ultrasonic Thickness Meter w/ Velocity Measure Thickness: 1.2~220mm / Velocity: 1000~9999m/s *****           This meter is a dual ultrasonic meter, a thickness meter that can also measure velocity. It measures the thickness of ultrasonic wave well-conductive material with parallel top and bottom surfaces from 1.2~220mm and has ultrasonic wave velocity measurement function from 1000~9999 m/s. Complete with features like memory for user-defined materials wherein the user can set & save their sample materials, adjustable ultrasonic velocity, selectable mm & inch measurement unit, coupling indication and built-in metal block for calibration (4mm), low battery indication and power off functions. It can be used to a wide variety of materials including iron, steel, glass, plastics, toughened tile, brass, gold, silver, zinc, water (at 20°C) and other materials.   Special Features Measuring thickness of various good ultrasonic wave conductors such as steel, aluminum, copper, glass, etc. Ultrasonic wave velocity or thickness display Manual material selection Adjustable ultrasonic wave velocity Selectable thickness unit, "mm" or "inch" Ultrasonic wave velocity testing Set & save your own materials (up to 5 memory) Coupling state display Instantaneous response (0.6sec) Auto and Manual power off Low battery voltage indication Built-in calibration metal block (4.0mm) Software calibrating to insure high reliability Tested according to European international guidelines and standards (CE Marking) Specifications Designed according to EMC directive: 2004/108/EC Ultrasonic wave frequency: 5 MHz Digital display: 4 digits Measurement Range: 1.2~220mm (steel) Tubes measurement: minimum F20mm x 3mm Ultrasonic wave velocity: 1000~9999m/s Resolution: 0.1mm Accuracy: ± (1% H + 0.1mm) Measurement Rate: 0.6 seconds Power supply: 3 x 1.5V AAA Batteries (Included) Operating Temperature: -10~50°C (14~122°F) Storage Temperature: -40~70°C (-40~158°F) Size: approx. 165 x 60 x 30mm Weight: approx. 210g (batteries and probe included) MATERIALS Digit Materials Ultrasonic Wave Speed 1 Iron / Steel 5900 M/S 2 Aluminum 6320 M/S 3 Copper 4700 M/S 4 Brass 4430 M/S 5 Gold 3204 M/S 6 Silver 3600 M/S 7 Zinc 4170 M/S 8 Stannum 3320 M/S 9 Glass 5850 M/S 10 Plastic 2250 M/S 11 Toughtened Tile 5580 M/S 12 Water (20 °C) 1480 M/S 13 Material a 6500 (user adjusting) 14 Material b 5500 (user adjusting) 15 Material c 4500 (user adjusting) 16 Material d 3500 (user adjusting) 17 Material e 2500 (user adjusting) Standard Set Includes 1 x Ultrasonic Thickness Meter 1 x Ultrasonic sensor probe 1 x Coupling Paste 1 x Lanyard (FREE) 1 x Operating Manual 3 x AAA Batteries (FREE) 1 x Protective carrying case (FREE)     Copyright © 2008. All rights reserved. Discount Instrument *
