BDM 100 Universal Reader/Programmer ECU Tuning

Brand New Product

The ECU must beremoved from the car and is programmed by special spring contactswithout soldering on the circuit board. This method is used for exampleif a car has no connection from the OBD connector to the ECU or forvery new ECU versions. The best tool for this is the BDM 100

Which wayof programming is used, depends on manufacturer, model, year and theECU type in the car. Generally we use the ?easiest? way of programming.So if a car can be programmed by the OBD port, we will do it this way.

After thesecurity entries for the OBD2 programming get more and more difficult,a new possibility has come up for chip-tuning of ECUs with MotorolaMPC555 ? 565.

Thisgeneration of Motorola processors contain 448KB - 1MB Flash memory.That memory cannot be read and programmed with an eprom programmer.Therefore it is possible over the so called BDM interface, which mustbe implemented on every ECU board. For that purpose there are mostly 10solder pads on the PCB.

Alternative there are ECUs with 12 or 14 solder pads, which can be supplied with operating voltage over these pads.

The BDM100connects these solder pads of the BDM port with the WinOLS PC over theUSB bus. The BDM100 gets its operating voltage from the USB bus. TheECU needs its own supply voltage of +12 volts.

The BDM100is a universal reader/programmer (it does not require our RACE softwarenecessarily) that allows the user to read and program files in the ECUsupplied with MOTOROLA MPC5xx processor essential).

The BDM100requires the ECU to be open, "on the bench", as the reading/programmingoperations are realized by linking a flat cable to specific area theECU as demonstrated in the picture below (the tool, on the other side,is linked to the USB port of a computer).

It allows also to create perfect copies of the whole software of an ECU (after having read the original ECU software).

The software allows to read and program the WHOLE ECU content of:

• 29BL802 SSOP eprom file (or ROM memory with maps if eprom physically not present);
• MOTOROLA MPC5xx Processor file;
• Serial Eprom content.

Pleasenote that even in the case of the ECU blocking, due to the wrongchecksum recalculation, the ECU can always be reprogrammed and thenretrieved (if the original software has been previously stored).

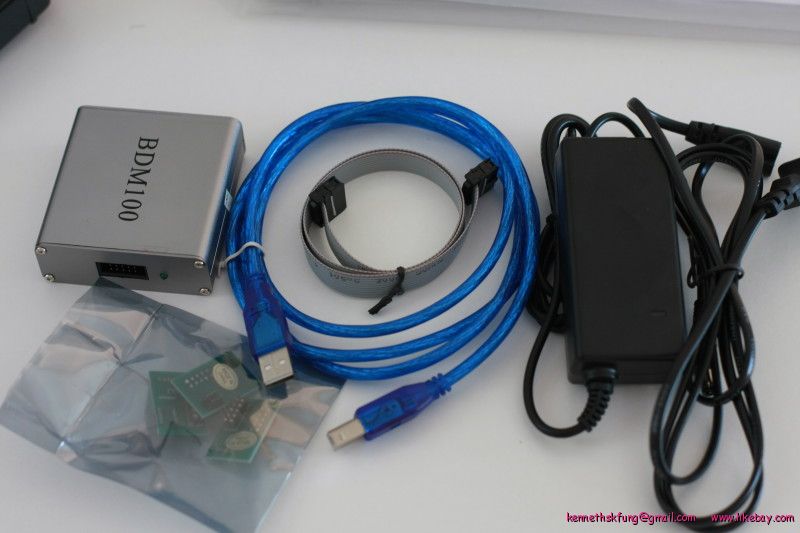

Package includes:

• BDM100 Interface.
• ECU connecting cable with 3 adapters.
• USB connecting cable.
• 12V Power Supply.

<
