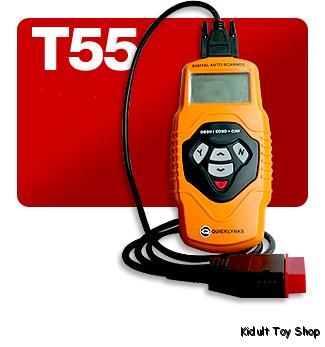

Multilingual OBDII Scanner T55
1.1 Tool Description
1. Checks 78 system of Audi&VW after 1990 including Engine, Airbag, ABS, Auto Trans....
2. Checks the Engine of all vehicle OBDII compliant after 1996.
3. Reads and erases the touble codes
4. Defines the touble codes on the screen.
5. live data to view the live or real time PID data of Vehicle��s computer Modules.
6. Multilingual.
7. Free upgarde on internet.
7. One Year warranty
1.2 Specifications:
Display: Backlit, 128 x 64 pixel display with contrast adjustment.
Operating Temperature: 0 to 50C (32 to 122 F).
Storage Temperature: -20 to 70C (-4 to 158 F).
Power: 8 to 16 Volts provided via vehicle battery.(We do not provide the battery in the product)
Dimensions:
Length Width Height
209 mm (8.22") 107 mm (3.74") 37 mm (1.38")
NW: 0.73kg (1.611b), GW: 0.98kg(2.161b)
1.3 Product Features
1.Works
on all 1996 and newer cars & light trucks that are OBD II compliant
(including the VPW, PWM, ISO, KWP 2000 and CAN protocols).
Available Functions:
1). Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).
2). Shows the live data to view the live or real time PID data of Vehicle��s computer Modules.
3). Detects OBD2 freeze frame information.
4). Determines the malfunction indicator lamp(MIL) status
5). Identifies and displays pending codes.
6). Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
7). Wider vehicles coverage with CAN protocol support;
8). Displays total # of codes retrieved
9). Code definitions displayed on unit screen;
10). Displays I/M readiness status;
11). Code definitions displayed on unit screen;
2. Works with Volkswagen and Audi(Audi/Seat/Skoda/Jetta/Golf/Beetle/Touareg/GTI /Passat and more) sold worldwide since 1990.
Support 78 systems as below:
Engine TV Tuner-Digital Clutch electronics
Autom. Trans Wheel damping electronics Engine electronics
Airbags Engine Electronics Conjunct. Locking Electronisc
ABS brakes Self leveling suspension Drive slip control
Auto HVAC ROOF ELECTRONICS DIS./CTL UNIT REAR
Cent. Elect. Specila Function Climate Control Unit Rear
Steering wheel BRAKER BOOST.ASSI. Voice Amplification
Instruments Auto. Lighting switch Driver`s side seat adj.
Aux. Heat DISPLAY-/CNTL UNIT Right light control
CAN gateway PASSE.-DOOR ELECT. Diesel pump electronics
AWD BRAKER BOOSTER DRIVER-DOOR ELECT.
Immobilizer Sliding Door Left Steering assistance
Cent.. Locks Auxiliary Fuel Tank Soundsystem
Navigation Battery control DRVS SEAT ADJ.REAR
Int. Monitor LR-DOOR ELECTRONI. Parking Brake
Cent. conv. Veh. Posit. Detect. TOWING PROTECTION
Xenon range VOICE CONTROL DRVS BOARDING ASS1
Radio WIPER ELECTRONICS Type pressure monitoring
Electric drive Roff Display/Control Head Seat-/mirror adjust.
TV-TUNER DRVS BOARDING ASS2 TRAILER FUNCTION
Parking aid Emergency call module Battery charger
Stabilizers Distance control RR-DOOR ELECTRONI.
Radio Satellite ACCESS & PERMISSI. Electric roof control
Rear spoiler PASSENE. SEAT ADJ. SLIDING DOOR
TELEPHONE Radio Tune Digit. Auxiliary Heater
Left light control Eng. Electronic2 Ind.Unit in Inst.Panel Ins.
Available functions:
1). Reads and clears generic trouble codes of cars using ISO 9141-2 (CARB), ISO
14230 (KWP-2000) and ISO-15765(CAN) protocols.
2). Displays total # of codes retrieved;
3). Code definitions displayed on unit screen;
3). Turns off MIL lights of engine, airbags, ABS, A/T and most other systems
4). Views the ECU information.
5). Readiness test to check the operations of the emission systems.
3. The unit increases the new funtion: EPB
Reset for the electronic parking brake system of Audi and VW cars, if
they have such systems. The function is optional.
4. Resets oil service light.
5. Multilingual.
6. One year warranty and free upgrade on internet
Vehicle Coverage
All
OBD2 & EOBD & JOBD compliant vehicles with a 16-pin
Interface(include all 1996 and newer cars, light trucks and SUVs sold
in the United States, all 2000 and newer sold in the Europe, Japan and
Asian Area) CAN,VPW,PWM,ISO9141,KW2000 protocals compliant
vehicles(including those equipped with the next-generation protocol
Control Area Network.) besides, also available for Volkswagen and
(Audi/Seat/Skoda/Jetta/Golf/Beetle/Touareg/GTI /Passat and more) sold
worldwide since 1990.
Accessories Included
1. User's Manual (Instructions on tool operations)
2. CD (Includes user's manual, DTCs lookup library, etc.)
3. OBD2 Cable (Works between OBD2 tool and vehicle)
4. Serial Cable (Used to update the scan tool)
5. Carry Case (A nylon case to store the whole set scan tool)
