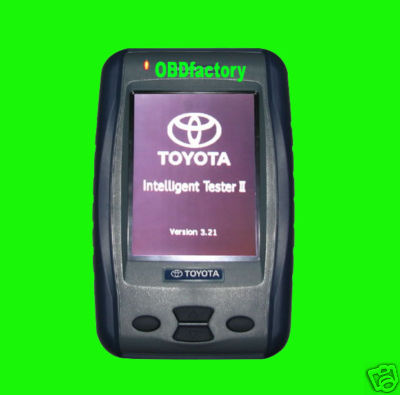

The Intelligent Tester II is designed to fully utilize the enhanced vehicle On-Board Diagnosis function such as improvement of data refresh rate (CAN protocol),enhancement of Freeze Frame Data and Active Test function and so on.
As an aid in diagnosing electrical and electronic control system, it is capable of monitoring and testing Electronic Control Units (ECUs) for powertrain, chassis and body systems and their associated sensors and actuators.
Easy and fast USB connection will realize tight integration with Personal Computer (PC) based applications and systems. The Intelligent Tester II has an ability of future extension via generic memory card slot and change of the optional unit. The wireless communication with PCs will be possible by using wireless card in the future.

Functions and Features:
   1. Detect Vehicle Connected Automatically
   2. Display Vehicle Current Data Parameters (Data List)
   3. Display Diagnosis Trouble Codes (DTC)
   4. Activate Relays, Solenoids, etc. (Active Test)
   5. Display Voltage Signals from Voltage Meter Probe
   6. Store All Data Parameters Before and/or After Problem Occurs (Snapshot)
   7. Reprogram ECUs
    Functions and Features of Oscilloscope Set:
   1. All Functions on Standard Set
   2. Display Voltage Signals from the Oscilloscope Probe for Analysis (Oscilloscope)
   3. 2ch inputs
   4. Input Impedance 2Mohm
   5. 1Hz-500KHZ for Frequency range
   6. Voltage Relative to Vehicle Ground –90 to +90v
   7. Measurement Accuracy –5% to +5%

The software for Intelligent Tester II is designed and developed by user oriented concept.Auto detect function recognizes the electronic control systems on the vehicle utomatically without selecting the vehicle models. The shortcut buttons for the frequently used functions will simplify the order of the operation.
The Intelligent Viewer (I-Viewer) is an application software run on the PC to analyze, store and print out the ECU data captured by the Intelligent Tester II. The data files stored in the I-Viewer can be transferred by attaching to an e-mail. Software Update Wizard and Calibration Update Wizard of ECU reprogramming will be a function of the I-Viewer.

Function:
All type of Toyota(made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

Character:
1. Touchscreen & back lighting control
2. Easy & quick
3. User needn't worry about the after service since factory has an open patio for maintenance.

Multi-language
ENGLISH,
SPANISH,
FRENCH,
GERMANY,
ITALIAN,
CHINESE,
RUSSIA,ETC.

Product List:
1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
