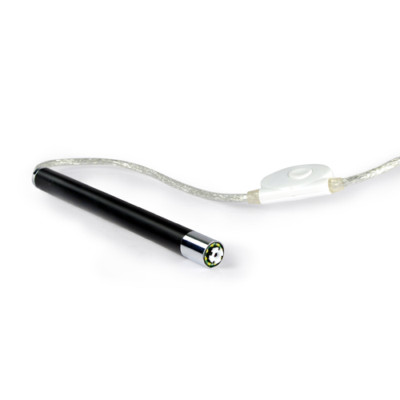

Tubular inspection micro endocamera or endoscope camera with white LED lights and direct USB cable connection for immediate image viewing and recording.

This tubular video camera packs a 24bit CMOS sensor into a long slender body and has multiple focusing attachments along with video and still image capture software to allow you to view and record images on your computer as you are doing your exploration.

Doing focused viewing and recording has never been easier. With the provided attachments you'll be able to perform a wide range of precision inspection tasks on hard to see areas. Simply install the rich featured video viewing and capture software and plug in the USB wand camera into your computer and you are ready to get to work. Whether you are planning to use this for veterinary care or to inspect collectibles, you will not be disappointed with the high quality color video you get from this unit.

At a Glance...

• USB tubular inspection digital camera with instant viewing and recording on your computer.
• High resolution color CMOS sensor for close-up viewing of hard to see areas / details.

Manufacturer Specifications

• Primary Function: Tubular micro inspection camera with direct USB connection
• Image Sensor: CMOS true color 24 bit RGB
• Resolution: 640x480, 352x288, 320x240 (the highest resolution is only for dual core computers)
• Focal Distance 10mm ~ infinity
• Magnification: up to 40x
• Frame Rate: up to 30 FPS
• DSP: YES - Vimicro digital image monarch system
• Video Capture Format: AVI
• Picture Capture Format: JPEG

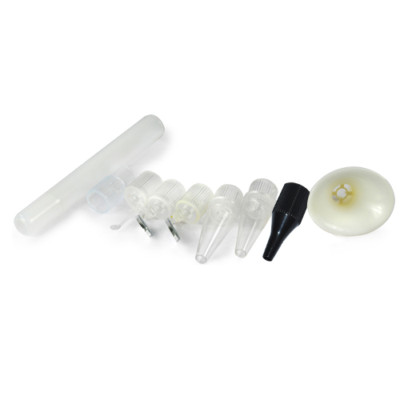

• Attachments:
  - Long Tube
  - Straight Focus
  - Small Focusing Cup
  - Large Focusing Cup
  - x2 Dentistry Mirror
  - x2 Ear/Nasal
  - x2 Pick
• Connection: USB
• Power Source: USB
• Software Capture Options:
  - Frames Per Second
  - Video resolution
  - Picture resolution
  - Brightness/Contrast/Gamma/Saturation/Sharpness
  - White Balance
  - Exposure
  - Mirror
  - Many others...
• Operating Systems: Windows 98SE / Me / 2000 / XP / Vista (32 bit version only) / Windows7
• Certification: FCC, CE, RoHS
• Dimensions: Camera Body - 140mm Length x 10mm Diameter
• Manufacturer Ref: WY5Q3FGDF6PU
• Catalog Ref: Tubular micro DV camera

Product Notes

• The nasal and ear cavity attachments allow for exploration of problem areas
• Popular magnifier for hobbyists and professionals - inspecting collectibles, electronic circuits, foods, veterinary care
• Can be used as endoscope/endocam

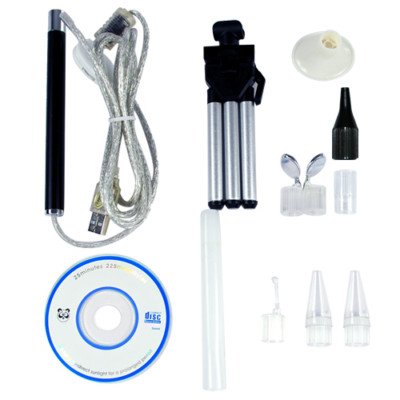

Package Contents

• Model CVSD-612-2GEN USB Tubular Digital Videocamera

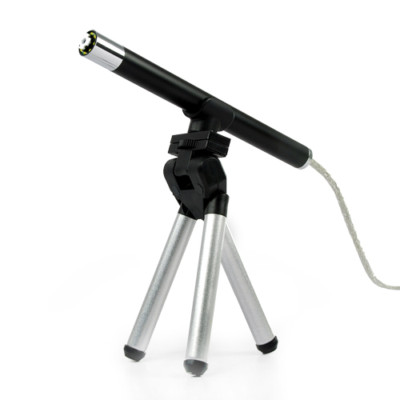

• Metal tripod
• 8 Vision enhancement attachments
• Software software and user manual
