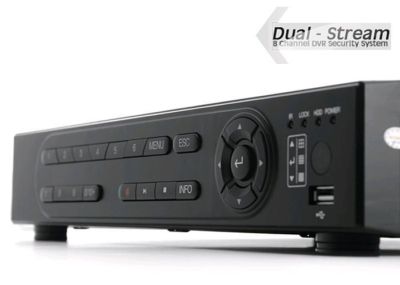

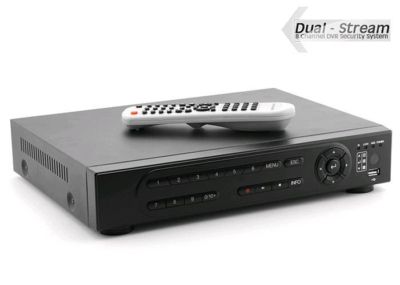

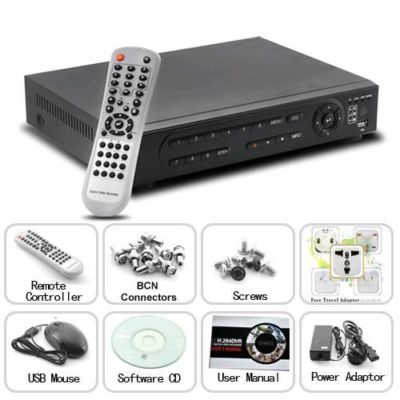

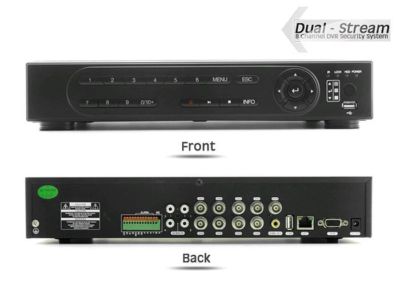

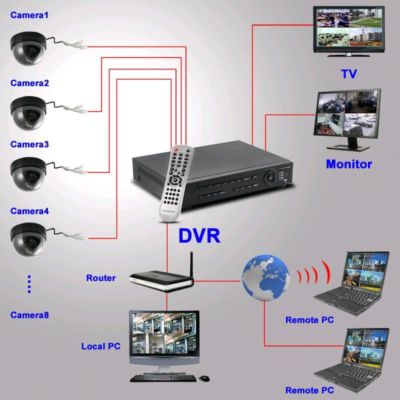

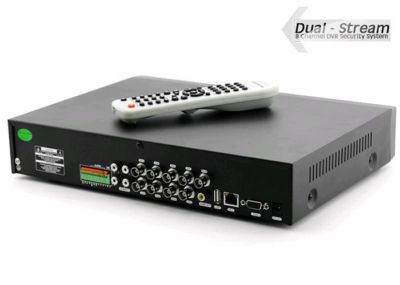

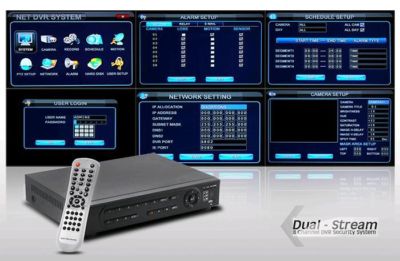

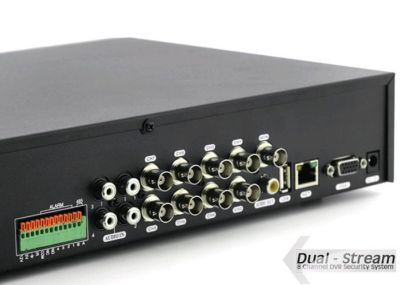

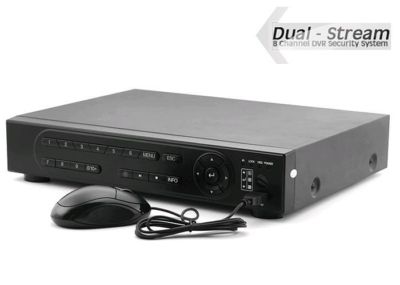

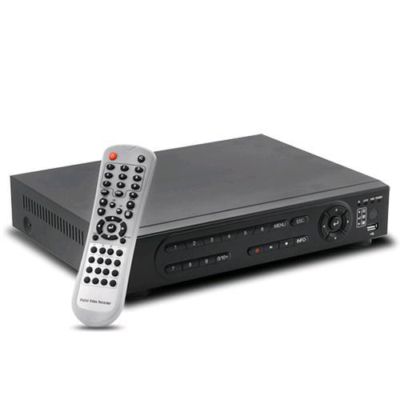

	Dual-Stream 8 Channel DVR Security System (H.264, free 500GB HDD) At a Glance... 8 Channel Simultaneous Recording/Viewing 500GB free HDD included Motion Detection / Alarm Detection H.264 video compression Support remote access through LAN or WAN Manufacturer Specifications Main Function: 8 Channel Digital Video Recorder (DVR) Video Specifications Video System: PAL, NTSC Video Compression: h.264 Video Standards: PAL (625 lines, 50 fps), NTSC 9525 lines, 60 fps) Surveillance Quality: PA, D1 (704x576), NTSC, D1 (704x480) Playback Quality: PAL, CIF (352x288), NTSC, CIF (352x240) (realtime); PAL, D1 (704x576), NTSC, D1 (704x480) (not realtime) Playback: 1 Chanel or multiple channel playback Code Ability: 100/120 fps (C IF), 200/240 fps (CIF), 60 fps (D1), 50/60 fps (D1) Storage Type: Internal HDD, Free Hitachi 500GB HDD included Number of Camera Inputs: up to 8 Video Display: Single or 8 Cameras Recording Mode: Manual/Alarm/Motion Detection/Timing Input: - Video Input: 4/8 x BNC Connector, 1.0V p-p/75 Ohm - Audio Input: 4 x RCA, 200 – 2800mV, 30Kohm Output: - Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms - Video VGA - Audio: 1 Channel RCA, 200-3000mV, 5Kohm Network Specifications Ethernet: Wired RJ-45 (10M/100M) IP address: DHCP, PPPOE General Specifications PTZ Control: 1RS485 Power consumption: 10W (without HDD) Working Temperature: 0 - 55 degree Working Humidity: 10% - 90% Atmosphere Pressure: 86 Kpa – 106 Kpa Dimensions: L: 340 x W: 250 x H: 60 mm Certification: CE, FCC, RoHS Product Notes Comes with full featured remote controller You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter H.264 compression to maximize recorded video quality If you are looking for DVR sets complete with 4 x Cameras and 500 GB HDD, please check out I39, I40, I41 or I42 User and Password for the software can be found in the user manual (page 28). To loggin, in IP/Port, please type in both the IP address and DVR Port, for example, 10.9.0.25:6802. Package Contents 8 Channel DVR Power Cable Remote Controller User Manual Software CD Screws BCN Connectors
