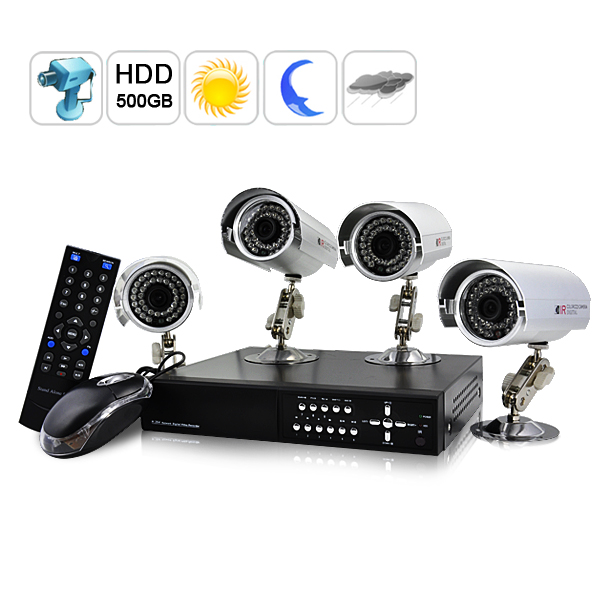

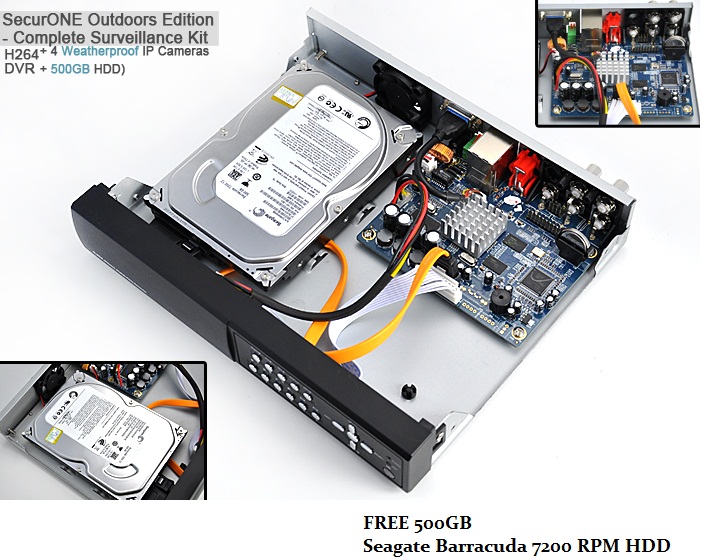

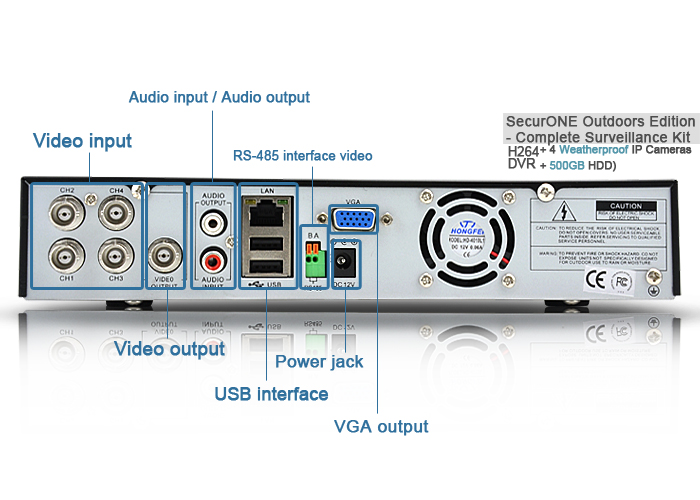

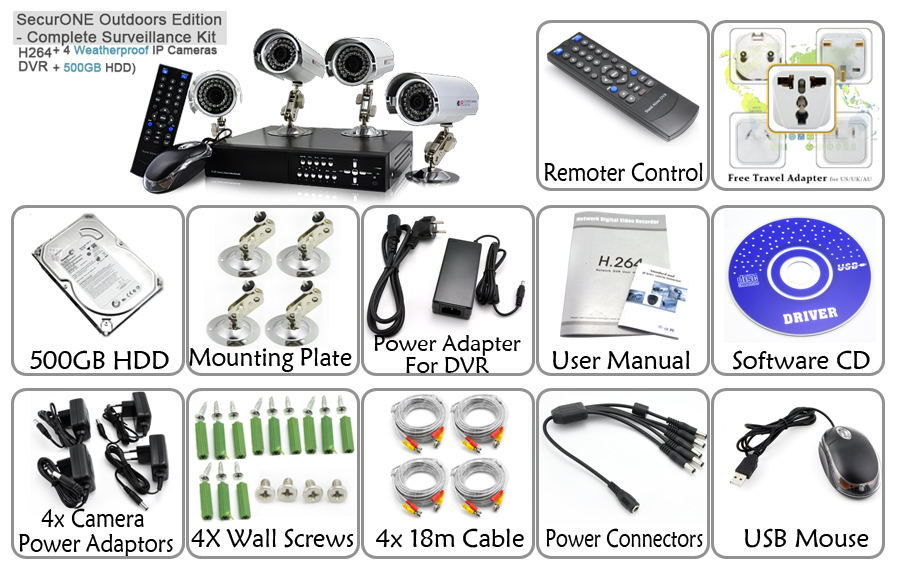

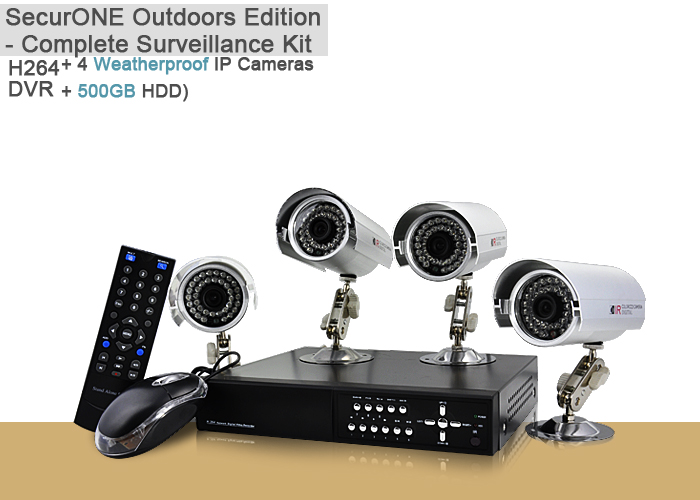

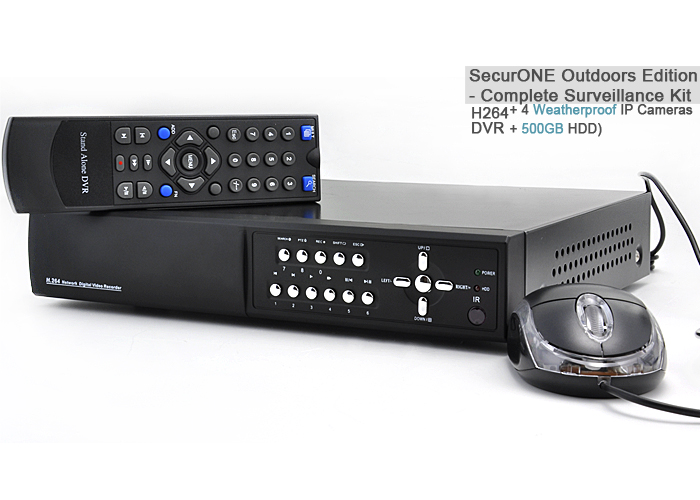

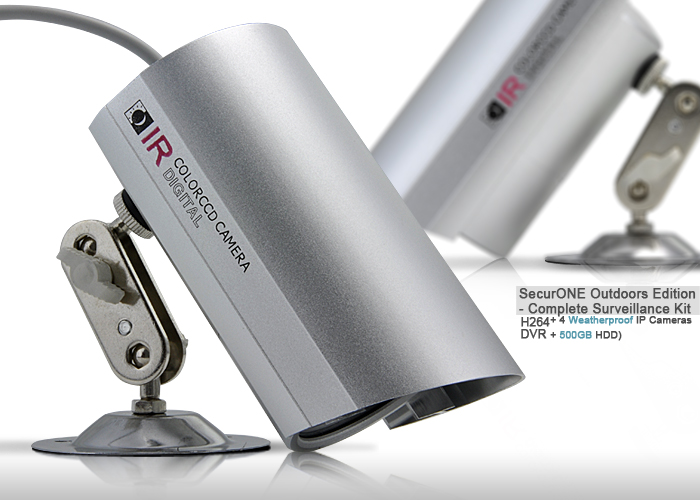

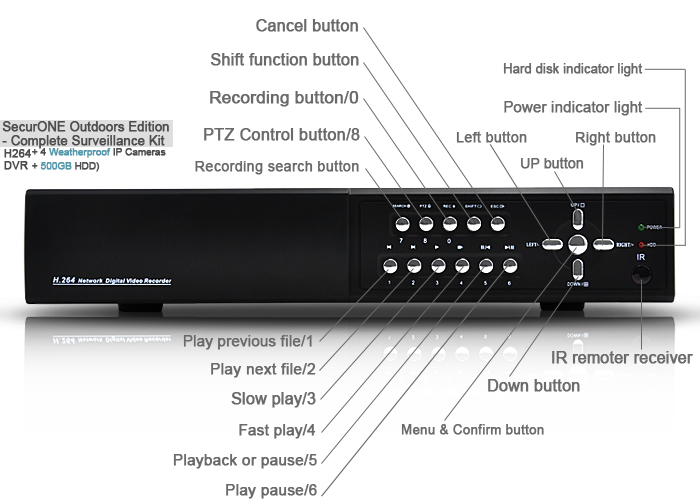

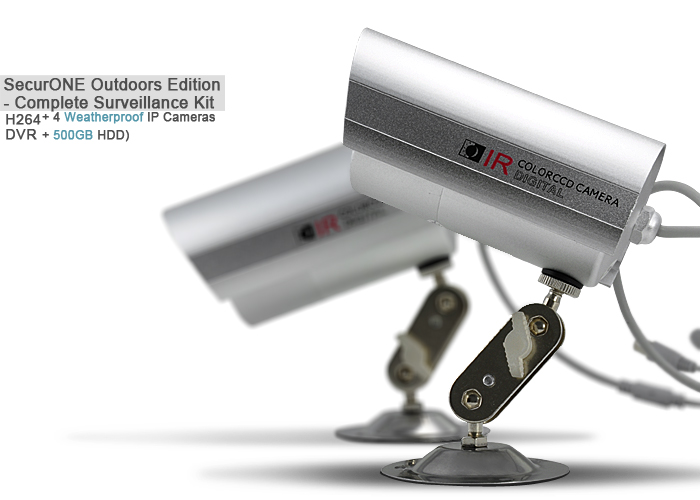

Complete Surveillance Kit for Security System At a Glance... H.264 Compression Standard 4 Separate Video Channels Total 120 FPS Display Supports Motion Detect Supports Mobile Phone View USB Mouse Included 4x 1/4" Weatherproof Color SONY CCD Cameras 10 second Pre-Alarm Recording FREE 500GB Seagate Barracuda 7200 RPM HDD included Manufacturer Specifications DVR SPECIFICATIONS Operating system: Embedded Linux Main function: Live display, Recording, Playback, Remote access Video display: Single camera or Quadrant split screen Recording mode: Manual / Timer / Motion detection Hard Drive: FREE 500GB Seagate Barracuda 7200 RPM HDD included Video systems: PAL/NTSC (Auto) Security camera BNC inputs: 4 TV display BNC outputs: 1 Audio sensor AV input: 1 Speaker output AV: 1 RJ-45 network adapter: 1 USB 2.0 ports: 2 (mouse, keyboard, flash drive, external HDD) RS485 port: 1 (PTZ control) VGA port: 1 (PC monitor) Video recording standard: H.264, true MPEG-4 compression Video size (depending on quality selected): 25MB - 450MB /hour Frames per second: 100 (total for 4 cameras) Motion detection support: YES Pre-Alarm recording: Able to record for 10 seconds before alarm goes off Network function support: YES PTZ function support: YES Mobile phone browsing support: YES Menu languages: English, Traditional Chinese, Simplified Chinese, Italian, Spanish, Russian, French, German, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese IP CAMERA SPECIFICATIONS Image sensors: Premium 1/4 inch color SONY CCD (Weatherproof) Shutter speed: 1/50th of a second TV lines: 420 Color system: PAL Infrared sensors: 36 LED IR distance: 30-40M Minimum illumination: 0 Lux Pixel resolution: 512 x 582 AGC: AUTO Backlight compensation: AUTO White balance: AUTO Cable Length: 18 M NETWORK SPECIFICATIONS: Network protocol: TCP/IP, PPPOE, DDNS and NTP Connection: RJ-45 Port (10/100M) IP address: Static / DHCP Remote browsing: Internet Explorer Remote capture: Image / Video Capture format: H.264 MP4 Certifications: CE, FCC, RoHS Product Notes Remote recording and snapshot control via Internet You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter. Network video surveillance is through Internet Explorer only. You will need to turn on the Active X control for the browser to download a small Active X component to view the live video. This DVR unit is compatible with all BNC connector security camera types. Package Contents Digital Video Recorder unit 12V/4A Power Supply Weatherproof Cameras x4 5.5V/1A Power Supply x4 18 meter BNC Cable x4 Remote Control Mouse Software CD User Manual - English Mounting Screws Power Connector FAQ - Frequently Asked Questions Why can't I view the control page from my FireFox browser? For best results, please use Internet Explorer (with Active X enabled) or the provided evaluation software. Do the four cameras have audio? The camera itself cannot record audio, but you can connect an external mic for audio recording. Do I have to turn night vision on manually? No, the cameras each have a light sensor that detects light levels and switches to nightvision/IR mode automatically! I noticed that the video systems listed for the DVR unit are PAL and NTSC. Yet the camera color systems are only PAL. Is this a mistake? No, the DVR unit supports both types of signals in that it is compatible with many different types of cameras. The SONY cameras included in this kit are of the more popular PAL type in the event you wish to use the cameras as standalone devices.
