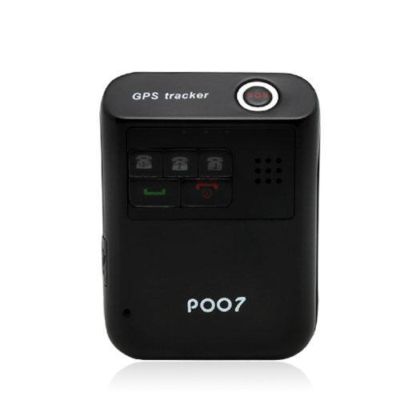

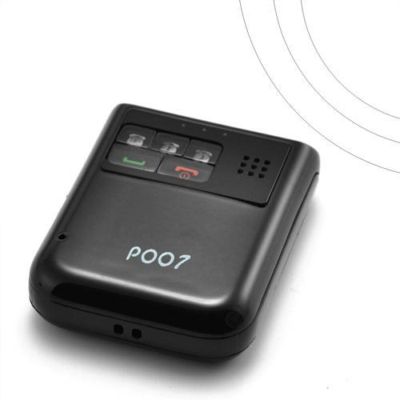

Personal GPS tracker with many useful SMS functions
Global Coverage with Quad-Band connectivity
Compact and easy to use
Two way calling function
Stores up to 3 numbers for emergency purposes
Geo-fence with SMS alert
NOTE:
This GSM product is compatible with the four frequencies of 850MHz,
900MHz, 1800MHz, 1900MHz. It can be used throughout the world.
Manufacturer Specifications
Primary Function: Mini Global GPS Tracker with 2 way calling
GPS Chipset: SkyTraq Venus6
GSM Frequency: 850 / 900 / 1800 / 1900
GSM Module: Simcom Sim340
GPS Sensitivity: -158 dBM
GPS Frequency: L1, 1575.42 MHz
GPS Position Accuracy: 8 M, 3D RMS
Velocity Accuracy: 0.1 m/s
Time to First Fix: - Cold status: 42s - Warm status: 38s - Hot status: 1s
Altitude Limit: 18,000 meters (60,000 feet) max
Velocity Limit: 515 meters/second (1000 knots) max
Acceleration Limit: Less than 4 G
Time: Synchronized to GPS time
Working Temperature: -20 to 55
Humidity: 5% to 95% non-condensing
Battery: Rechargeable Li-ion Battery
Battery Life (Constant Use): 3 Hours
Battery Life (Standby): 24 hours
Dimension: 62 (h) x 45 (W) x 18 (h) mm
Weight: 88 g (with battery)
Manufacturer Ref: E7K3NQN1H7XM
Product Notes
Comes with FREE software that can help setup the GPS tracker when connected to a computer
Save the most common instructions as TXT templates for quick references
Please make sure that there is enough credit on the SIM card placed inside the GPS unit
Some
features listed in the user manual are not present as the manual has
been generalized for a multi-model product range. When in doubt, refer
to this product description for supported functionality

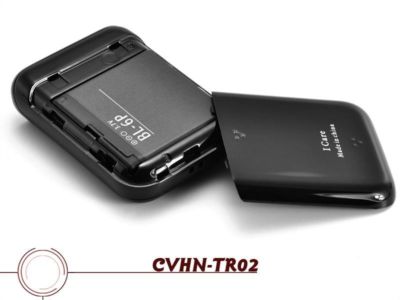

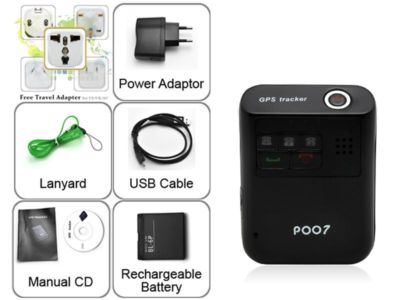

Package Contents for CVHN-TR02
Mini Global GPS Tracker
Rechargeable Battery
USB Cable
Manual CD
Lanyard
Power Adapter
FAQ - Frequently Asked Questions
Does this GPS Tracker have an onboard speaker and MIC?
Yes, the Mini Global GPS Tracker with 2 Way Calling comes with a
built-in speaker and MIC for you to hold to your ear and use like a cell
phone. The sound quality is excellent.
Two way calling, does that mean I can use this GPS tracker as a cell phone?
Kind of. You will be able to receive calls from anyone that dials the
phone number associated with the SIM card in the tracker. You can only
dial out to the 3 numbers pre-programmed by you in the GPS tracker.
The GPS tracker doesn't work. What's wrong? A number of things could cause this to happen: 1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work) 2) Make sure there is money left on the SIM card and that it has not expired 3) Make sure there is no PIN code associated with the SIM card 4) Make sure roaming is enabled on your SIM account if you are in a different country
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into
usable visual information. You can also use the included trial software.
How does a GPS tracker actually function?
There's a sophisticated GPS microchip embedded into the heart of this
tracker which continually reads its own location from low orbiting
global satellites and then utilizes the GSM infrastructure operated by
major cellular network providers via the SIM card to transmit its
current location to you.
I'm a mom and I'm trying to figure out how I can put this product to use.
OK, picture this. You drop off your teenage kids at the library, but
you can't be sure whether their there studying after you dropped them
off, or off to a friends house for some tomfoolery. Just hide this in
their knapsack and send a text message to the SIM card within the GPS
tracker & the location in precise latitude & latitude will be
sent to you automatically from the GPS tracker. Then you can then check
their location using Google maps and see if your kids are really at the
library or...at. The. Mall.
