A easy to use device, perfectly suited from everyone from dentists, to
teachers, to just plain curious people, and available at a super low
price that only gets better the more you order.
Note: This device is not intended as a replacement for regular dental checkups
Manufacturer Specifications

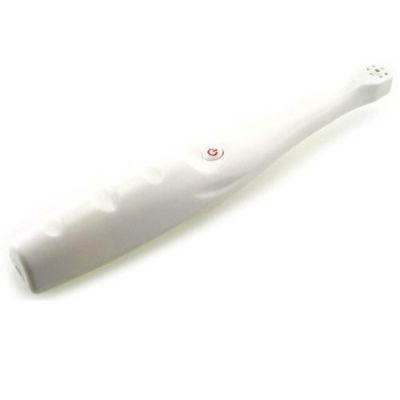

Camera - Image Device: 1/4 CMOS
- TV system: PAL- 628x582 Resolution
- Horizontal Definition: 380 TV Lines
- Angular Field of View: 45 deg
- Minimum Illumination: 2 Lux
- 6 Built In LED Lights
- White Balance: Auto
- S/N Ratio: 52dB
- Transmission Frequency: 2.4GHz
- Recommended Max Range for Objects: 10~30mm (auto focus)
- Transmission Range: 10 Meters
- Power Source: Built In Rechargeable Li-ion Battery
- Dimensions: 215mm x 26mm x 25mm (L x W x D)

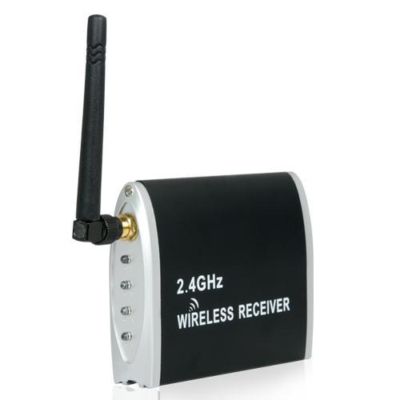

Receiver - Receiving Frequency: 2.4GHz
- Intermediate Frequency: 480MHz
- Frequency Stabilization: +/-100KHz
- Demodulation Mode: FM
- Antenna: 50ohm SMA
- Receiving Sensitivity: <-85dBm
- Power Source: DC 5V
- Dimension: 70mm x 85mm x 20mm (L x W x D)
- Channels Available: 4
- Channel Select for Multiple Cameras
- USB to Computer/AV OUT
Product Notes
- Included Drivers/Programs on CD
- Systems: Windows 98SE/ME/2000/XP/Vista (32 bit version only) - 1.3MP Snap Shot Pictures Saved Directly to Computer When Receiver Connected to PC
- Included Sanitary Covers
- Comfortable hand held design
- Camera with built in rechargeable battery

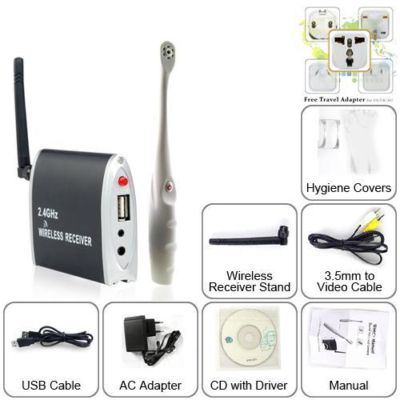

Package Contents
- Model CVSD-624 Wireless Dental Camera
- Manual
- Hygiene Covers
- 3.5mm to Video Cable
- USB Cable
- Wireless Receiver Stand
- AC Adapter
- CD with Driver
