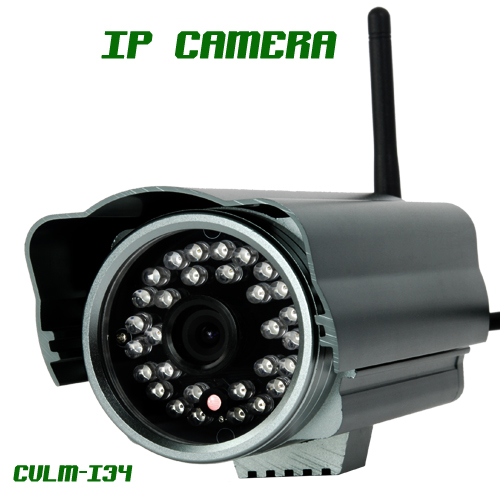

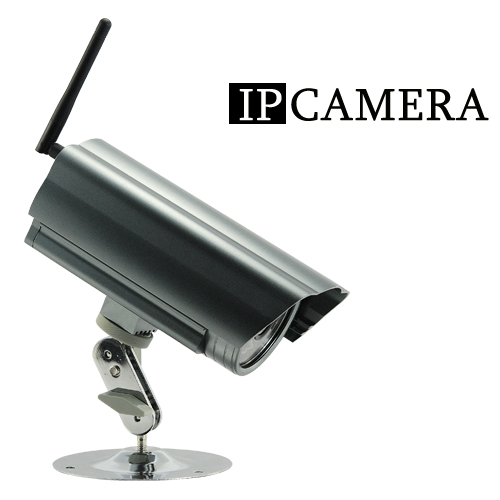

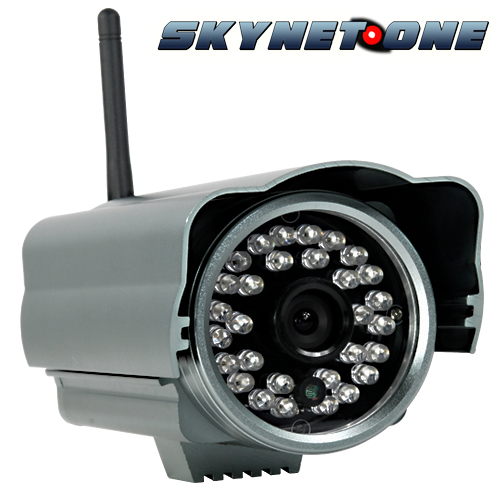

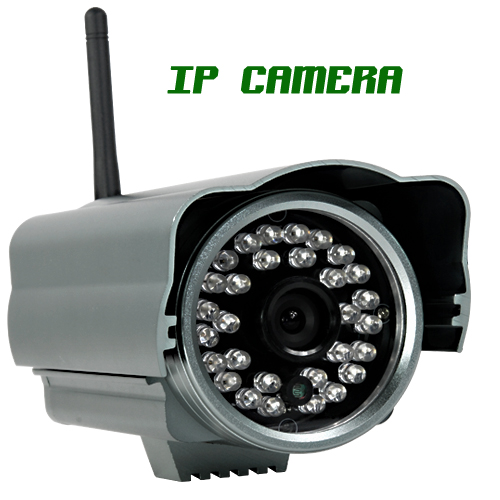

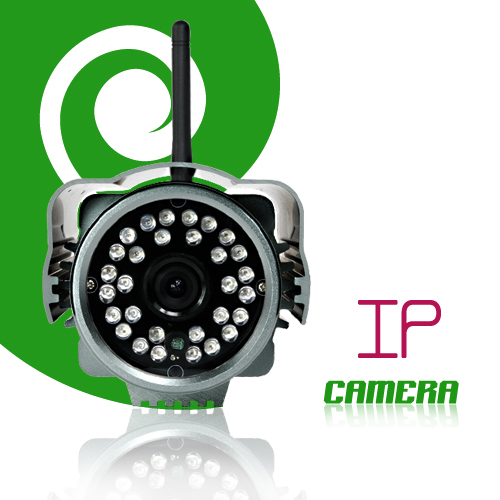

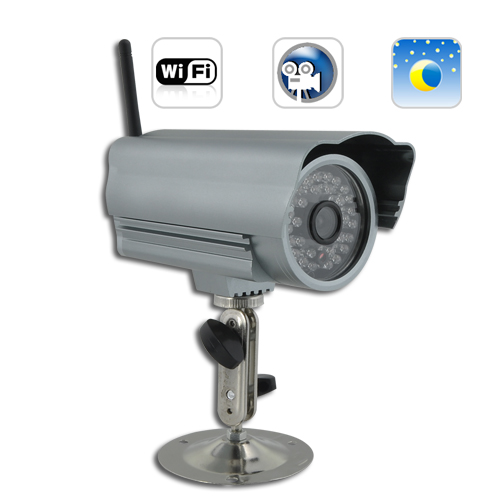

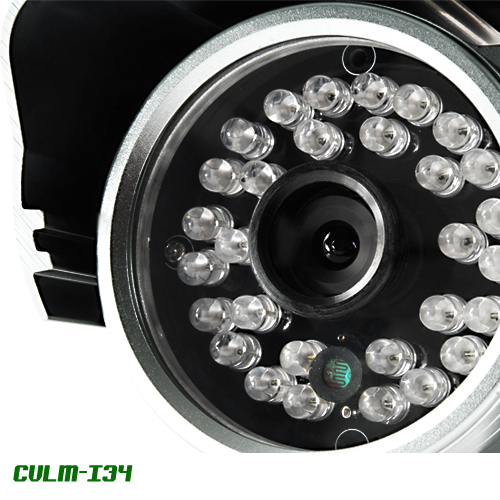

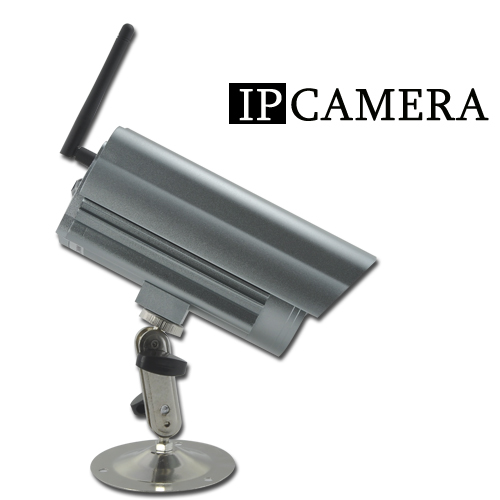

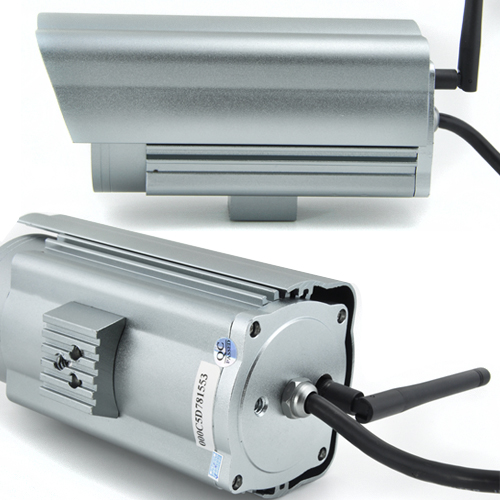

High Quality IP Security Camera(WIFI, DVR, NightVision) At a Glance... High quality CMOS sensor Access camera output from anywhere on the Web Can function with or without PC Record 100 fps interpolated videos to your hard drive Connect through WiFi or LAN cable Nightvision (30 IR LED's) Waterproof Manufacturer Specifications Primary Function: Waterproof IP Security Camera with WIFI and Night Vision Camera Information: - Sensor: 1/4 inch CMOS - Horizontal Definition: 380 TV Lines - Lens: f=6.0mm - Minimum Illumination: 0 Lux - White balance: AUTO - Infrared: Yes (30 LED lights) - Daytime Effective Distance: 100 meters - Nighttime Effective Distance: 50 meters Image Information: - Video Resolution: VGA (640x480), QVGA (320x240) - Video Frame Rate: VGA (30 fps interpolated to 100 fps), QVGA (30 fps interpolated to 100 fps) - Video Format: AVI (Motion JPEG) - Video File Size: ~ 30 Mb / minute (VGA) - Still Image Format: JPEG IP Information: - Connectivity: Wired (RJ-45/10-100 Base T) or WIFI (802.11 b/g) - WIFI Encryption: None, WEP, WPA-TKIP, WPA-AES, WPA2-AES, WPA2-TKIP + AES - Protocols Supported: TCP/IP, DHCP, SMTP, HTTP, DDNS, UPNP, ICMP, FTP, DNS, UDP General Information: - Waterproof: Yes - Requires Computer: NO - Multi-camera support: 4 - Browser Display: Single or Quad - Power consumption: 3W - Certification: CE, FCC - Dimensions: 170 mm (length) x 65 mm (diameter) - Manufacturers Ref: CDHC45N1MF3F Product Notes Recording camera output is done through your IE browser. Simply install the software on disk and it will add viewing and recording functionality to your browser. Setup 4 cameras in order to monitor four different locations. Package Contents For CVLM-I34 IP Security Camera WIFI Antenna Power Adapter 100 - 240v Mounting Kit Ethernet Cable CD - (English User Manual, Software) FAQ - Frequently Asked Questions Is this camera PAL or NTSC? The concepts of PAL and NTSC are irrelevant when it comes to web surveillance cameras. It will work with any display. How big are the video files recorded from The Skynet One IP security camera? One minute of footage recorded at VGA quality is roughly 29 MB in size. So if you have a 500 GB hard drive, you could concievably record almost 300 hours of surveillance with The Skynet One. That's roughly 2 weeks worth! Is that a typing mistake? You claim that this IP security camera records AVI at 100 frames per second! That's better than DVD quality?!?!?! It's no mistake. We were amazed too. We verified the results independently with two industry software programs known for file analysis: GSpot 2.70a and MediaInfo. Both programs verified that resultant videos are 100 frames per second. The secret in how the Skynet One achieves such a high frames per second rate has to do with the interpolation method by which is automatically makes multiple copies of each image it captures and lays down the copies next to the originals as they are recorded. The result, although 30 frames per second are sensed, 100 frames per second are created on file for a better viewing experience. Why is this camera called Skynet One? Well did you by any chance see that James Cameron movie? NO! Not Avatar. The other one. No not Spider Man. Ah not Titanic either. Or Aliens. OK fine, fine we're talking about Terminator. Terminator, the movie. Skynet One...the machine AI that caused the war between man and machine...
