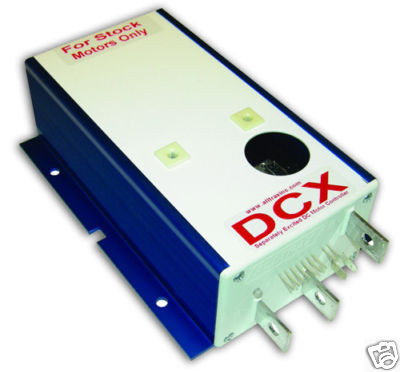

HI PERFORMANCE REGEN DCX300 SHUNT CONTROLLER EZ-GO DCS
Price: $449.00
NEW DCX Performance Products for
SHUNT Wound [Separately Excited]
Electric Motors for EZ-GO DCS CARS
MODEL: DCX300 (300 amp)
The DCX
product line is used with
SEPARATELY EXCITED
Wound Motors, Commonly called SHUNT wound motors. These units drive golf cars,
people movers, scissors lifts, boom trucks, Neighborhood electric vehicles,
Programmable via RS232 comm port using PC or
Laptop
Integrated anodized heat-sink with multi
bolt pattern for flexibility
Fully encapsulated epoxy fill -
environmentally rugged design
Available in 300, 400, 500, and 600 amp
Performance versions
Advanced MOSFET power transistor design for
excellent efficiency
and power transfer
1/2 Speed reverse option and a variety of other applications.
Model: DCX300 /
DCX400 / DCX500 / DCX600
Type:
Separately Excited (Shunt) DC motor controller
Battery Input Voltage: 24 – 48VDC Nominal, (60VDC max)
Under voltage cutback: adjustable, 16-30 VDC
Over voltage shutdown: adjustable, 30-60 VDC (60VDC MAX)
Field Current Limit: 30A (Programmed for Motor Field Excitation
Curve)
Operating Frequency: 18kHz
Contactor (Solenoid) drive current: 2A max
Control voltage range 12 – 60 VDC @ 15mA max:
Key Switch
Input
Throttle Inputs
Reverse Mode
Inputs
Reverse Horn
Output: 50mA sinking max (Active Low = Horn ON)
Standby Current (Power Up): < 35mA
Throttle Input:
ITS (inductive)
Resistive 0-5K
ohm (+/-10%) (2-wire and 3-Wire)
Resistive 5K-0
ohm (+/-10%)
0-5Volt
6-10Volt
Operating
Temperature: -25C to 75C, 95C shutdown
Programmable Field Excitation Map (Factory shipped)
Adjustments via Controller Pro software:
