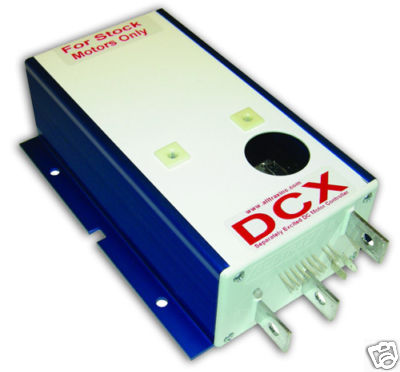

NEW DCX Performance Products for SHUNT Wound [Separately Excited] Electric Motors for EZ-GO PDS CARS MODEL: DCX600PDS (600 amp) The DCX product line is used with SEPARATELY EXCITED Wound Motors, Commonly called SHUNT wound motors. These units drive golf cars, people movers, scissors lifts, boom trucks, Neighborhood electric vehicles, Programmable via RS232 comm port using PC or Laptop Integrated anodized heat-sink with multi bolt pattern for flexibility Fully encapsulated epoxy fill - environmentally rugged design Available in 300, 400, 500, and 600 amp Performance versions Advanced MOSFET power transistor design for excellent efficiency and power transfer 1/2 Speed reverse option and a variety of other applications. Model: DCX300 / DCX400 / DCX500 / DCX600 Type: Separately Excited (Shunt) DC motor controller Battery Input Voltage: 24 – 48VDC Nominal, (60VDC max) Under voltage cutback: adjustable, 16-30 VDC Over voltage shutdown: adjustable, 30-60 VDC (60VDC MAX) Field Current Limit: 30A (Programmed for Motor Field Excitation Curve) Operating Frequency: 18kHz Contactor (Solenoid) drive current: 2A max Control voltage range 12 – 60 VDC @ 15mA max:   Key Switch Input Throttle Inputs Reverse Mode Inputs   Reverse Horn Output: 50mA sinking max (Active Low = Horn ON) Standby Current (Power Up): < 35mA Throttle Input:   ITS (inductive) Resistive 0-5K ohm (+/-10%) (2-wire and 3-Wire) Resistive 5K-0 ohm (+/-10%) 0-5Volt 6-10Volt   Operating Temperature: -25C to 75C, 95C shutdown Programmable Field Excitation Map (Factory shipped) Adjustments via Controller Pro software:   Throttle acceleration / deceleration ramp rate Throttle map (curve) profile: Linear, Progressive, S-Curve MAX (Armature) current limit (0-100%) Brake current limit (0-100%) Under / Over voltage shutdown Top Speed & Turbo button Half Speed Reverse High Pedal Disable Plug Brake TURBO (used only at FULL Throttle)   Model number breakdown, for example the { DCX600-ITS } is broken down as: DCX - Family name 600 - First three digits = amperage, = 600 Amp model xxx-ITS - "Option Identifiers" = Inductive Throttle Setting - Factory programming,   (xxx-EZ is the E-Z-Go programming)     CHECK OUT MY OTHER AUCTIONS YOU CAN PICK UP FROM 2957 RANDOLPH AVE SUITE B, COSTA MESA, CA 92626 MONDAY THROUGH SATURDAY 9AM TO 6PM THEREFORE, YOU PAY NO SHIPPING COSTS !! OR WE CAN SHIP TO YOU. WE DO COMBINE SHIPPING COSTS ON MULTIPLE ITEMS!!
