Features:

• 380 lines of resolution

• Complete kit with instructions

• Just minutes to install

• Four wireless color cameras

• Receiver for the cameras

• AC Adapter for receiver

• 9V battery clips for the four cameras

1 YEAR WARRANTY

BUY WITH CONFIDENCE


Camera Specifications:

• Camera Specification Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz

• Imaging Sensor: 1/3 inch OMNIVISION Color CMOS

• Horizontal Resolution: 380TV Line

• CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)

• View Angles: 62 degrees

• Minimum Illumination: 2.0Lux

• Gain Control: Automatic

• Transmission Power: 10mW

• Consumption Current: 80 mA

• Modulation Mode: FM

• Bandwidth: 18M

• Operating Range: 30m/100m (Obstructed / Unobstructed)

• Power: DC 8V ;built-in li-battery

• Operating Temperature: -10oC ~ +40oC

• Operating Humidity: 85%RH

• Dimension(WxLxH):23x23x46 mm

• Weight: 20g

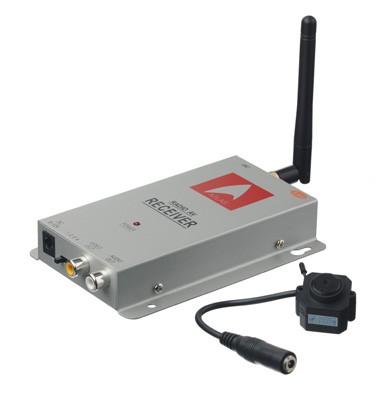

Monitor Specifications:

• Frequency: ISM 2,400 - 2,483MHz

• Antenna: Omni-directional antenna

• Channel: 1-4 (Flip-type switch)

• Intermediate Frequency: 480MHz

• Frequency Stabilization: +/- 100KHz

• Demodulation Mode: FM

• Receiving Sensitivity: ¨Q-85dBm

• Video Output: 1Vp-p@75 ohm, S/N>38dB

• Video Output: 1Vp-p@75 ohm, S/N>38dB

• Power:DC 9V/12V

• Operating Temperature: -10oC ~ +40oC

• Operating Humidity: 85%RH

• Dimension(WxLxH): 110x80x20 mm

• Weight: 130g

This System Comes With Four Switchable Channels For Each Camera. Very small and can be placed anywhere. Easy to install and can be set up in minutes!

Watch on your computer monitor or Television. Wireless color hidden camera which will work with the supplied AC Adapter or 9V battery.

UPC: 859456002287
