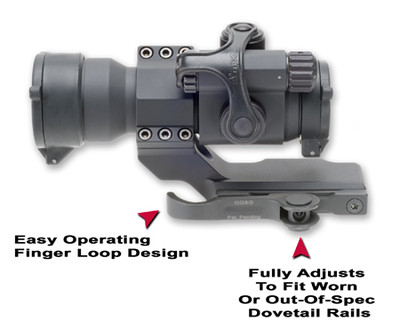

Important Aimpoint CompM2, ML2 and M3 Mounting Considerations:
Do
to the Accucam mounting mechanism being located on the non-ejection
port side of most weapons, the battery/brightness control mechanism of
the Aimpoint will be located at the 10:00 o'clock position as shown in
the above image (non-ejection port side), instead of the 2:00 o'clock
position (ejection port side). This allows a right handed shooter to
easily operate the Accucam QD mechanism and the brightness control knob
with the off hand instead of the fire control hand. The windage and
elevation adjustments are also rotated.
Important Aimpoint CompM3 Rubber Cover Consideration:
If
you intend to use the rubber cover included with your Aimpoint CompM3,
it will need to be modified to fit with the Accucam QD Aimpoint
Cantilever Mount.
Product Description:
Many
of you have asked us to develop a quick detach system for our combat
tested Aimpoint Cantilever Ring. With the development of our Accucam
Quick Detach Locking Lever System we are now able to fill those
requests. The new Accucam Quick Detach Aimpoint Cantilever Ring has the
same robust features as our original Aimpoint Cantilever Ring. The body
is manufactured from solid billet 6061 T6 aluminum and six cap screws
firmly hold the Aimpoint in place. Also, a spare battery is kept handy
in an insulated capped waterproof compartment.
The Accucam QD Locking Lever System provides you with a solid method
to quickly install or remove your Aimpoint mount from the weapon system.
The Aimpoint can quickly be installed on a dovetail rail in seconds by
rotating the Accucam Cam Lever to the locked position. It can then be
quickly removed by rotating the Accucam Cam Lever to the unlocked
position. It is fully adjustable to fit Weaver and MIL-STD-1913
dovetails. The unique design allows you to adjust the tension to
accommodate out of spec or worn dovetails. Not recommended for certain heavy caliber guns.
In tests, the Accucam Locking Lever System has shown to be repeatable
to 1/2 MOA. The unique finger loop design is easily operated, even with
a gloved hand and the rounded design is ergonomic and virtually
snag-proof. The Accucam mechanism is manufactured from solid billet 4140
steel and manganese phosphated black to mil-spec.
GG&G Aimpoint accessories, cantilever mounts, and rings are made
in the USA at our Tucson, Arizona factory. Scope mounts and mounting
rings for tactical environments have to be made of top-grade material
and machined to the finest tolerances, so they can perform in combat and
police situations. Our components for Aimpoint, like the QD Cantilever
Ring, are designed to enhance the trusted capabilities of Aimpoint's
scope while giving more options to the A15 and 16 operator.
