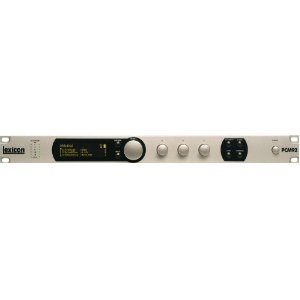

Lexicon PCM-92 Reverb Effects Processor Brand New Studio/Live
Price: $1,599.00
Brand New, Factory Sealed Full Warranty Lexicon PCM 92
Explore a variety of natural sounding rooms with the nuances of inherent realism.
This powerhouse Lexicon reverb uses the latest
DSP technology and the finest collection of classic Lexicon algorithms
to offer the ultimate audio processor for live sound and studio
applications. With over four decades of experience, Lexicon is regarded
as a standard in digital audio processing. Building on the similar
design and technology of many Lexicon products, the PCM92 is one of the
most advanced reverb and effects processors in its class.
The
rackmount Lexicon PCM92 reverb delivers 28 mono and stereo reverbs,
delays, and modulation effects, flexible routing configurations, and a
comprehensive collection of over 1200 finely crafted presets, including
recognizable classics from an immense library of sounds.
The
Lexicon reverb features Hall, Concert Hall and Random Hall reverb
algorithms that are consistently used by live sound and recording
engineers because of their ability to reproduce the musical ambiance of
large, wide, panoramically wonderful spaces. In fact, these classic
Lexicon Hall algorithms have been used on more than 80% of all recorded
music.
Lexicon's Room algorithm offers an amazing palette of
natural sounding rooms with all the inherent realism of the actual
space. Reflection patterns are easily selected, scaled, and equalized
all while simultaneously passing audio and the room size can be
instantly changed or reversed. These capabilities provide a more
flexible alternative to convolution type reverbs due to the precise
control and manipulation that is only possible with a reverb
synthesizer.
One of the advances in this Lexicon reverb is the
ability to create realistic small spaces. For both music and film
production, it is often vital to have the ambience of a phone booth or
very small drum room. In the Lexicon PCM92 you can create them with a
reality never heard before from any processor other than a Lexicon.
In
addition, the PCM92 effect processor delivers capabilities to
traditional reverbs by adding multimode filters in the audio flow. This
allows more exact shaping of the reverb while still maintaining that
distinctive smooth, rich "Lexicon Sound." Also, all reverbs have an
"Infinite" switch that allows the reverb to run forever, which is useful
for creating unusual backgrounds and sound effects.
Features
28 Lexicon studio-standard reverbs, delays, and modulation effects
Comprehensive
collection of over 1200 finely crafted factory presets, including
recognizable classics from Lexicon's immense library of sounds
Lexicon's flexible Room algorithm used to generate a vast array of room-related effects for music and film production
Multi-voice pitch shift to enhance vocals
Full system configuration and control with HiQnet System Architect
44.1 to 96 kHz sample rate, 32-bit floating point processing
Two channels balanced analog I/O (XLR and 1/4")
Two channels XLR digital AES/EBU I/O
Ethernet connectivity and full MIDI control
External BNC Word Clock
Foot controller inputs make it easy to change presets and adjust parameters during live performances
High-resolution OLED display is easy to read in all light conditions
PCM92 Reverb Effects Processor Specifications:
Analog Audio Inputs
Connectors Two XLR-1/4" TRS (combi-jack) analog balanced inputs
Impedance 20k Ohm, balanced
Input Level +4dBu mode: +20dBu max
-10dBV mode: +8.2dBu max
Type IV mode: +26dBu max
Analog Audio Output
Connectors Two Male XLR and Two Female 1/4" TRS
Impedance 30 Ohm, electronically balanced
Ouput Level +20dBu
Digital Audio I/O
Connectors One Female XLR Input / One Male XLR Output
Format AES/EBU balanced
Conversion 24-bit A/D; 24-bit D/A
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz
Accuracy within +/-50ppm
Lock Range +/-2% of nominal
Audio Performance
Freq Response @96KHz 20Hz to 20kHz, +/-0.25dB
20kHz to 40kHz, +0/-3dB
THD <.003%, 20Hz to 20kHz @ +4dBu
Dynamic Range >112dB unweighted, 115dB A-weighted
Crosstalk @ 1kHz <-90dB, 20Hz to 20kHz @ +20dBu input
Internal Audio DSP 32/64-bit floating point
Synchronization
TTL Word Clock Input 75 Ohm, BNC
Control Interface
MIDI In/Out/Thru
Footswitch One 1/4" TRS connector for independent momentary footswitches
Foot Controller One 1/4" TRS connector for foot pedal (100 Ohm - 10kOhm impedance)
Environment
Operating 15 to 35 degrees C
Storage -30 to 70 degrees C
Humidity 75% relative humidity max
General
Rack Units 1U
Dimensions 19.0" W x 1.75" H x 9.5" D
Weight 8 lb.
Power Consumption <14W
Warranty Parts and Labor 1 year
Return
Items must be returned within 14 days . Refund will be given as Money back. Refund policy details: Refund for defective products only. Otherwise, a restocking fee may apply.
