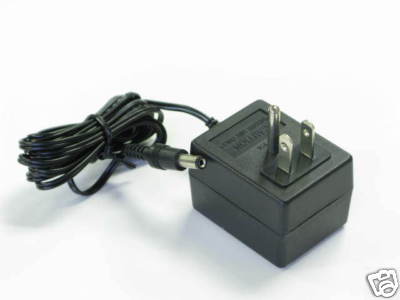

Hello, This auction is for New, unused, Switching Power SUpplies which are considered overstock due to customer's order cancellation.

Complete spec may be downloaded here: www.davidandjen.com/ebay/WD2E100CCP.pdf

ELECTRICAL SPECIFICATIONS:

INPUT VOLTAGE: 120 VAC

INPUT CURRENT: < TBD mA

INPUT FREQUENCY: 60 HZ

OUTPUT VOLTAGE: + 12 VDC + 5 % @ RATED CURRENT

OUTPUT VOLTAGE ( NO LOAD ); < 15.5 VDC MAX.

OUTPUT CURRENT ( RATED ) 100 mA

OUTPUT POWER (RATED): 1.2 WATTS MAX

PROTECTION: INPUT FUSE SAFETY

APPROVALS: UL1310, CUL

DIELECTRIC WITHSTAND VOLTAGE: 1250 VAC PRIMARY-SECONDARY, 1250 VAC SECONDARY-GROUND

LEAKAGE CURRENT: < 0.1 mA

OPERATING TEMPERATURE: 0°C TO 40° C

TEMPERATURE RISE: < 70° C FOR RATED LOAD.

STORAGE TEMPERATURE: -20°C TO 80° C

HUMIDITY: 0% TO 90% RELATIVE HUMIDITY

INPUT CONNECTOR:

CONFIGURATION: NEMA 5-15P 2 BLADES & GROUND PRONG

OUTPUT CORD: 2 CONDUCTOR, 22 AWG STRANDED WIRE, FLAT UL 2468 CORD TYPE,

COLOR BLACK,

LENGTH OF CORD: 1830 +100, -0 mm.



CORD IS MEASURED FROM THE HOUSING TO THE END OF OVERMOLD OF THE CONNECTOR. CABLE IS TO BE MARKED WITH WIRE GAUGE, AND ALL APPLICABLE RATING AND SAFETY APPROVALS.

OUTPUT CONNECTOR: STANDARD, STRAIGHT FEMALE BARREL 5.5 x 2.1 x 11 MM WITH CENTER POSITIVE

Approvals: UL/cUL

We are selling them in box lots. Each box contains 100 pcs. We have 203 boxes If you need to get less than box quantity, you may contact me for considerations. We can ship freight collect with your own carrier, please contact me in advance for authorization. New Jersey Buyers must supply a resale certificate, if not, we cannot accept your bids. Thanks



WD2E100CCP 20,156 0 20,156 0 0.91 3 POW SUP;3-PRNG WALL PLUGIN;IP: 120V60HZ,OP:12VDC.1A,5.5X2.1MM
