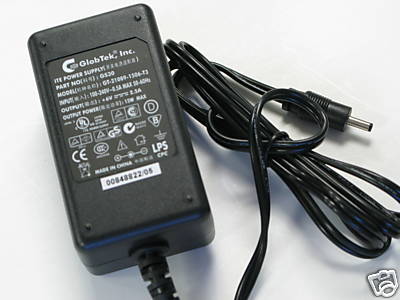

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Hello, This auction is for New, unused, Switching Power SUpplies which are considered overstock due to customer's order cancellation. Basic Specification: INPUT INPUT VOLTAGE: 90Vac TO 264Vac INPUT CURRENT: <1.6A rms AT 90VAC INPUT INPUT FREQUENCY: 47HZ - 63HZ OUTPUT : OUTPUT VOLTAGE: 24VDC, NO LOAD TO FULL LOAD, NO MINIMUM LOAD REQUIRED OUTPUT CURRENT: 2.1 A RATED OUTPUT POWER: 50 WATTS, MAXIMUM OUTPUT REGULATION: +/- 5% MEASURED AT THE OUTPUT CONNECTOR LINE VOLTAGE REGULATION: +/- 1% TYPICAL MEASURED AT FULL LOAD HIGH FREQ. OUTPUT RIPPLE: 1% OF OUTPUT VOLTAGE , PEAK TO PEAK, TYPICAL TURN-ON/TURN-OFF OVERSHOOT: 5% MAXIMUM, 1mS TYPICAL RECOVERY TIME FOR 25% STEP LOAD TURN-ON DELAY: 1 SECOND, TYPICAL HOLD-UP TIME: 10mS TYPICAL AT NOMINAL INPUT VOLTAGE AND FULL LOAD INRUSH CURRENT: 20A TYPICAL AT 115Vac INPUT AND 30A TYPICAL AT 230Vac INPUT SWITCHING FREQUENCY: 100KHZ TYPICAL EFFICIENCY: 75% TYPICAL AT NOMINAL INPUT AND FULL LOAD OUTPUT INDICATOR: GREEN LED FOR OUTPUT PRESENT PROTECTION OVER-VOLTAGE: VOLTAGE LIMITED BY CROWBAR METHOD OVERLOAD: HICCUP MODE WITH AUTO-RECOVERY (110 - 130% OF RATED LOAD) SHORT CIRCUIT: HICCUP MODE, OUTPUT WILL AUTORECOVER UPON REMOVAL OF SHORT INPUT PROTECTION: INPUT LINE FUSING SAFETY DIELECTRIC WITHSTAND VOLTAGE: 4242Vdc FROM PRIMARY TO SECONDARY EARTH LEAKAGE CURRENT: 500uA at 264Vac INPUT VOLTAGE APPROVALS ITE UNITS: UL 60950 (THIRD EDITION), CUL TO 22.2 NO. 60950, TUV TO EN60950, PSE TO J60950, CB REPORT, AS/NZ 60950, CCC TO GB4943-2001,GB9254-1998, GB 17625.1-2003 EMI: COMPLIES WITH EN55022 CLASS B AND FCC PART 15 CLASS B, VCCI WHEN TESTED WITH RESITIVE LOAD, BOTH CONDUCTED AND RADIATED EMI. CE MARK: TESTED TO COMPLY WITH EN61000-3-2 EN610003-3 AND EN50082-1 INCLUDING EN61000-4-2 (SYSTEM LEVEL), EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 LEVEL 4. C-TICK TESTED TO COMPLY WITH AUSTRALIA SECTION 182 OF THE RADIO COMMUNICATION ACT OF 1992. MTBF: GREATER THAN 50,000 HOURS AT 25°C AMBIENT TEMPERATURE NOMINAL LINE AND FULL LOAD (MIL-217 STD) OPERATING TEMPERATURE: 0°C TO 40°C AMBIENT TEMPERATURE HUMIDITY: 0% TO 90% RELATIVE HUMIDITY STORAGE TEMPERATURE: - 40°C TO 80°C SIZE: 118 x 60 x 33 + 0.5 mm Output Plug: 3 MALE MINI DIN KYCON KPP-3P LOCKING OR EQUIVALENT   The picture used is a stock photo, actual unit may have slighly different appearance.   This auction is for 1 unit, we have 3 available. Large quantity available upon request. New Jersey Buyers must supply a resale certificate, if not, we cannot accept your bids. Thanks
