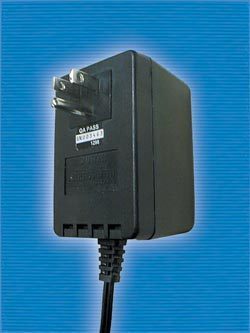

5V DC, 2.6A Switching Power Supply, Wall Plug, NOS

Price: $25.00

Add to Cart


Click Here. Double your traffic. Get Vendio Gallery - Now FREE!


Hello,

This auction is for New, unused, Switching Power SUpplies which are considered overstock due to customer's order cancellation.

This is a super high quality medical grade unit.

Download spec here: http://www.cordsets.net/ebay/WR92A2600EIAJ2-Y-MED.pdf

Basic Specification:

INPUT

INPUT VOLTAGE: 90Vac TO 264Vac

INPUT CURRENT: <0.5Arms AT 90Vac INPUT

INPUT FREQUENCY: 47HZ - 63HZ

OUTPUT

OUTPUT VOLTAGE: 5 VDC

OUTPUT CURRENT: 2.6 A, NO LOAD TO FULL LOAD, NO MINIMUM LOAD REQUIRED

RATED OUTPUT POWER: 13WATTS, MAXIMUM

OUTPUT REGULATION: +/- 5% MEASURED AT THE OUTPUT CONNECTOR

LINE VOLTAGE REGULATION: +/- 1% TYPICAL MEASURED AT FULL LOAD

HIGH FREQ. OUTPUT RIPPLE: 1% OF OUTPUT VOLTAGE , PEAK TO PEAK, TYPICAL

TURN-ON/TURN-OFF OVERSHOOT: 5% MAXIMUM, 1mS TYPICAL RECOVERY TIME FOR 25% STEP LOAD

TURN-ON DELAY: 1 SECOND, TYPICAL

HOLD-UP TIME: 10mS TYPICAL AT NOMINAL INPUT VOLTAGE AND FULL LOAD

INRUSH CURRENT: 30A TYPICAL AT 115Vac INPUT AND 40A TYPICAL AT 230Vac INPUT

SWITCHING FREQUENCY: 100KHZ TYPICAL, VARIES WITH LINE AND LOAD

EFFICIENCY: 75% TYPICAL AT NOMINAL INPUT AND FULL LOAD



North American Wall plug in, NEMA 5-15P type.

Output plug: STRAIGHT FEMALE BARREL EIAJ-2, 1.7 x 4.0 x 13.5 mm (SPRING LOADED WITH LOCKING NOTCH), CENTER POSITIVE

This auction is for 1 unit.



New Jersey Buyers must supply a resale certificate, if not, we cannot accept your bids. Thanks





The free listing tool. List your items fast and easy and manage your active items.
Return
I do not accept returns
