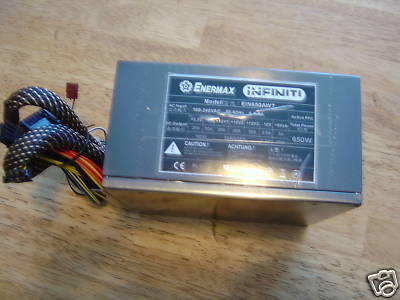

ENERMAX INFINITI 650W MODULAR POWER SUPPLY W/ACTIVE PFC
MODEL NO:EIN650AWT
This is an excellent power supply- With very little use on the power- Only problem is that the cables are not included- This is why we are listing this as a used item other than that it is ready for daily heavy usage-
Enermax INFINITI 650W ATX12V & EPS12V Computer Power Supply EIN650AWT, 80PLUS Certified, Active PFC, RoHS Compliant, SLI & Crossfire Ready, Supports SATA & PCI-E
The INFINITI is a class of its own, with the highest standard on safety and protection. The PowerGuard feature warns you of potential failure and shuts down your system before any damage can occur. Our CoolGuard function allows your system fans, including the CPU cooler, to run after system is shut down to protect your whole system against heat.
Features:
- The next generation of power.
- DXX ready for PCI Express 2.0 / DXX next generation graphic cards with 6+2p (8p) PCI Express connector.
- 80PLUS certified
- DUAL QUAD TRIPLE + 18: DUAL CPU, QUAD CORE, TRIPLE GRAPHICS + 18 DRIVES.
- 24/7 @ 40oC: Running with full power in industrial environments.
- 82-85% efficiency @ 20-100% load: Minimizing your electricity bill.
- Modular Cables: SATA or PATA without restrictions.
- Three separated 12V rails: The best rail design for this PSU class.
- CoolGuard: The new patent feature, running not only PSU fan after shutdown, but all system fans to get the heat out of the system and increasing system lifetime by up to 20%.
- PowerGuard: The world's first desktop PSU series with 4-mode PSU status alarm with reset button.
- Leading PCB design: The foundation of ENERMAX' philosophy and its products to make the utmost possible.
- Tight & Stable: Essential to high-end systems.
- Security: OCP, OLP, SCP, OVP, UVP & OTP secure PSU and system from damage.

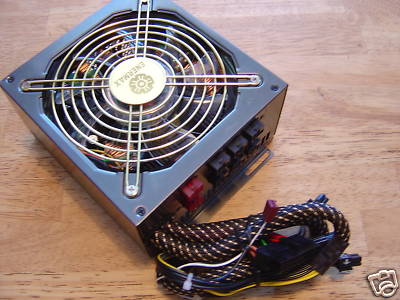

- Silent & Cool: A special 13.5cm fan ensures cool performance and silent operation.
Specifications:
- Model: EIN650AWT.
- Series: INFINITI.
- Type: ATX12V/ EPS12V.
- Maximum Power: 650W.
- Fans: 1.
- PFC: Active.
- Main Connector: 24Pin.
- Dual +12V: Yes.
- Modular Cabling Support: Yes.
- Efficiency: 82~85%.
- Over Voltage Protectio: Yes.
- Overload Protection: Yes.
- Input Voltage: 100 - 240 V.
- Input Frequency Range: 50/60 Hz.
- Input Current: 9.5/ 4A.
- Output: +3.3V@25A,+5V@30A,+12V1@28A,+12V2@28A, +12V3@ 30A,[email protected],+5VSB@3A.
- MTBF: Greater than 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25oC ambient.
- Approvals: RoHS.
|
