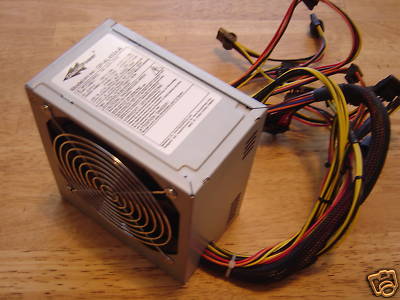

GLACIAL POWER 450W SWITCHING POWER SUPPLY

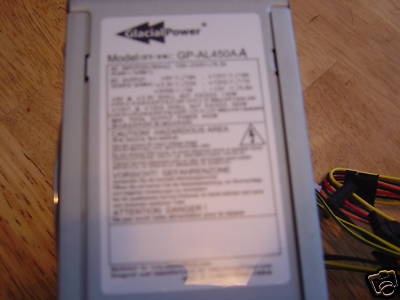

MODEL NO: GP-AL450A

Features ATX12V Version 2.2 Design with active PFC function Dual +12V rails and +5Vsb capability 15 W Full output power from 0°C to 50°C Full protection features of SCP, OVP, OCP, OPP, OTP Power efficiency meet Energy Star 80 plus program criterion Fan speed control and delay shut down to extend components 　life time Fan switch off (0 dBA) at low load and selectable between 8cm 　and 12cm   Manufactured with high reliability and in strict processes

Electrical Specifications

Input Voltage Range 90 ~ 264V AC, 47~ 63Hz Power Efficiency Average > 80% Operating temperature range 0 ~50˚C at full load Operating Humidity 10~90% Leakage Current <3.5 mA / 240V AC MTBF 100K hrs min.MIL-HDBK-217F (25˚C) Dimension 150 × 140 × 86 mm

450 W (APFC with 8/12 cm Fan)

DC Output +5V +3.3V +12V1 +12V2 -12V +5Vsb Min. Current (A) 0.3 0.3 0.5 0.5 0 0 Max. Current (A) 18 22 16 17 0.6 3 Combined Max. Power (W) 130 360 7.2 15 Total Max. Output Power (W) 450
