Manufacturer:

Antec, Inc

Manufacturer Part Number:

TPQ-1000

Manufacturer Website Address:

www.antec.com/us/

Brand Name:

Antec

Product Line:

TruePower Quattro

Product Name:

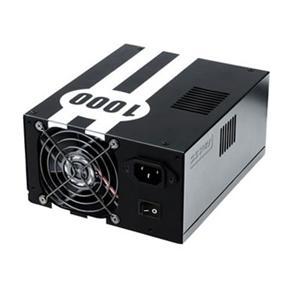

TruePower Quattro ATX12V & EPS12V Power Supply

Marketing Information:

Antec's TruePower Quattro! Available in 1000 Watts, Quattro is more compact than most competing power supplies of the same wattage, yet ideally suited for handling the most demanding system specs. TruePower Quattro is 80 PLUS Bronze certified which means that Quattro consumes about 33% less energy than many equivalent power supplies with the same power output. Four 12V rails increase your system stability by letting you distribute your power more than ever before. Comes with four PCI-E connectors for powering one (or even two) of the newest generation of video cards. All modular cables are sleeved and labeled to give your system a clean and professional look-while the racing stripe paint job will add some extra style.

Product Type:

ATX12V & EPS12V Power Supply

Efficiency:

85%

Power Factor Correction (PFC):

Active

Number of Fans:

1

Protection Type:

·  Over Voltage

·  Under Voltage

·  Over Current

·  Short Circuit

NVIDIA SLI Support:

Yes

MTBF:

100000 Hour

Input Voltage Range:

100 V AC to 240 V AC

Output Voltage:

·  3.3 V DC @ 25 A

·  5 V DC @ 30 A

·  12 V DC @ 25 A

·  -12 V DC @ 500 mA

Output Power:

1 kW

Receptacles:

·  1 x 24-pin ATX Motherboard

·  2 x 6-pin PCI-E

Dimensions:

3.40" Height x 5.90" Width x 7.10" Depth

Weight:

5.75 lb

Shipping Dimensions :

5.5" Height x 9.25" Width x 11.5" Depth

Case Pack Qty :

6

Shipping Weight :

8.6 lb

Pallet Qty :

99996

Additional Information:

·  1 x 20+4 Pin Main connector

·  4 x 12V Rails

·  80mm Low noise cooling fan

Green Compliance:

Yes

Green Compliance Certificate/Authority:

·  RoHS

·  80 Plus
