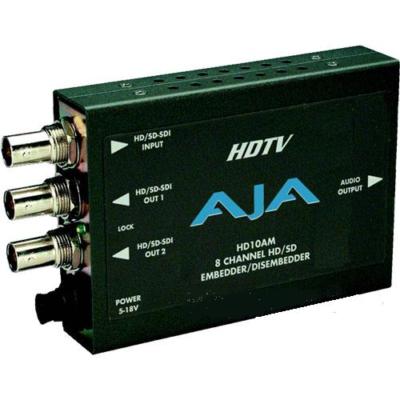

The AJA HD10AM is an audio Embedder/Disembedder that works with an SDI media signal. This device operates at a dual rate offering High Definition and Standard Definition functionality; it has the ability to extract 8 AES audio channels and output them on XLR connectors. The user also has the ability to select the embedding process, accepting AES audio and embedding 8 channels with the SDI video signal.
NEVER USED BRAND NEW 90 Days Software Support Only Full Hardware Warranty
Dual Rate
This device automatically detects the type of SDI input; it is compatible with Standard Definition or High Definition Video Signals.
AES Audio
The HD10AM embeds or disembeds 8 channels of AES audio on 4 XLR connectors. The sample rate is converted to a 48 kHz synchronous to the input video standard.
Breakout Cables
Supplied breakout cables allow the main device to be a compact size; all channels of audio are input on a multipin connector breaking out to XLR connectors.
Embedding and Disembedding
This unit accomplishes both tasks with the user's selection.
Input
SDI Digital Video, SMPTE 259M or 292/296M Video With or Without SMPTE 272M-AD Audio, on a 75 ohm BNC connector AES Digital Audio x4, 8 Channels, @ 110 ohms, on XLR connectors via breakout cable
Output
SDI Digital Video x2, SMPTE 259M or 292/296M Video With or Without SMPTE 272M-AD Audio, on a 75 ohm BNC connector AES Digital Audio x4, 8 Channels, @ 110 ohms, on XLR connectors via breakout cable
Conversion
This unit can embed or disembed AES digital audio on HD or SD SDI video
Control
Slide Switches: Embedder On/Off Channel Pairs 1/2-7/8 Input group select 1/2, 3/4 Output group select 1/2, 3/4 SRC Bypass
Power Source
5-18 VDC from an Optional AC Power Adapter
Dimensions (WxDxH)
5.8 x 3.1 x 1" 14.7 x 7.9 x 2.5cm
Weight
Not Specified by Manufacturer
