The HDPro-24 is a blazing fast 24-drive hardware RAID solution from CalDigit, with support for up to 24 SATA-II 3GB/s drive modules. The HDPro-24 provides hardware RAID 0, 1, 5, 6, 10, 50, 60 and JBOD support, and sustained speeds of over 1600MB/s can be achieved with RAID 50 protection. Dual hardware RAID controllers feature a next generation Intel XScale RAID engine accompanied by high speed, upgradeable ECC cache.

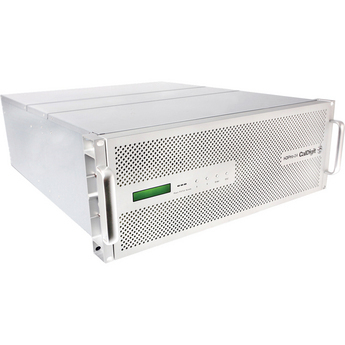

The 4U rack mount system features an intuitive LCD display and LED status lights. Featuring Active Sustained Transfer Technology (ASTT), the HDPro-24 ensures that there is always a constant throughput. This unit is ideal for use with the CalDigit SuperShare SAN or massive media files. The modular design of the HDPro-24 allows for easy access to 24 hot swappable drive modules from the front. It features 3 hot swappable load bearing power supplies, and even the built-in controllers are removable and upgradeable.
CalDigit builds all major components of the HDPro-24 and uses only high quality certified hard drives to provide users with the best possible experience. The key to the blazing fast speed of the HDPro-24 is the direct connect external PCIe connection. The HDPro-24 is made to run 24/7, with no downtime.
Built To Run
The HDPro-24 is designed to run with no downtime. It features dual RAID controllers with cache battery backup, 3 hot swappable load bearing power supplies and hot swappable ambient temperature controlled smart fans. These items can be replaced even without the use of tools.
ASTT
Active Sustained Transfer Technology was designed by CalDigit's top engineers to provide the ultimate in sustained performance. With ASTT, the performance of your HDPro-24 is always kept in check, ideal for HD video and beyond.
Hardware RAID
The HDPro-24 features dual RAID controllers with Intel XScale processors to accelerate RAID performance and provides support for multiple RAID levels. By utilizing this advanced technology from Intel, the CalDigit HDPro-24 provides a powerful solution for professionals looking for the ultimate in performance.
Reliable
Designed with redundant components and made to run 24/7 with no downtime, the HDPro-24 comes with CalDigit's industry leading warranty and knowledgeable tech support.
Smart
The HDPro-24 comes with RAID Shield to provide easy monitoring and configuration, providing full-featured access to the HDPro-24.
Direct Connect
The HDPro-24 uses a direct connection to the extremely fast PCIe bus found in modern workstations. Throughput is up to 20GB/s with no delay, making the HDPro-24 about 5 times faster than traditional fiber channel solutions.
Single Vendor Support
All major components of the HDPro-24 have been designed and developed by CalDigit - many other RAID systems use major components from multiple vendors, making support a nightmare. Because CalDigit offers single vendor support, any questions or support needs are just one phone call away.
High Speed
The HDPro-24 is extremely fast, providing a sustained throughput of over 1600MB/s with RAID 50 protection.
Modular Design
The HDPro-24 features hot swappable drives, fans, and power supplies. Even the RAID controller and cache are upgradable.
Centralized Storage for Collaboration
The CalDigit HDPro-24 is the ideal storage solution for use with the CalDigit SuperShare. The CalDigit SuperShare allows users to access the same storage pool simultaneously, increasing productivity and cutting costs. One or more of the HDPro-24s can be added to the SuperShare storage pool providing blazing fast, protected storage to multiple users.
Capacity 24TB
Bays 24
Connectivity Direct Attached ePCIe
Sustained Data Transfer Rate Over 1600MB/s Sustained RAID 50
RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Desktop/Rackmount 4U Rack Mount
Status Indicator LED Lights
Dimensions (WxHxD) 18.9 x 6.8 x 22.2" (48.2 x 17.5 x 56.5 cm)
|
